MS20 Slim Weatherproof Maglocks
Designed for outdoor use, the MS20 slim weatherproof maglocks feature a robust construction with a brushed stainless steel case to protect against harsh environmental conditions. Extra-thick electroless nickel plating provides maximum corrosion resistance, ensuring long-term reliability. Available with either an end cable gland or rear cable exit, these maglocks are ideal for pedestrian and vehicle gate installations.
MS20-WS-U-12VSlim weatherproof maglock, 250kg, unmonitored, 12V
MS20-WS-UR-12VSlim weatherproof maglock, 250kg, unmonitored, 12V, with door status

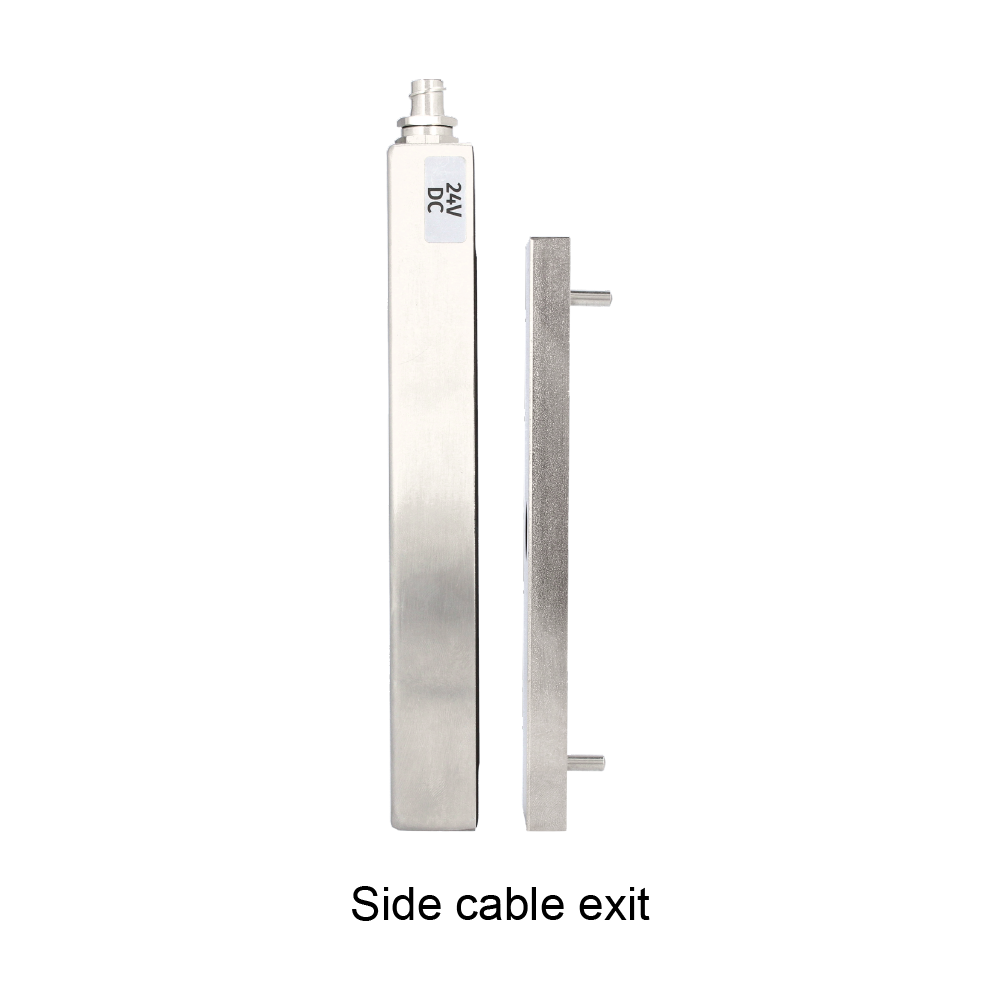

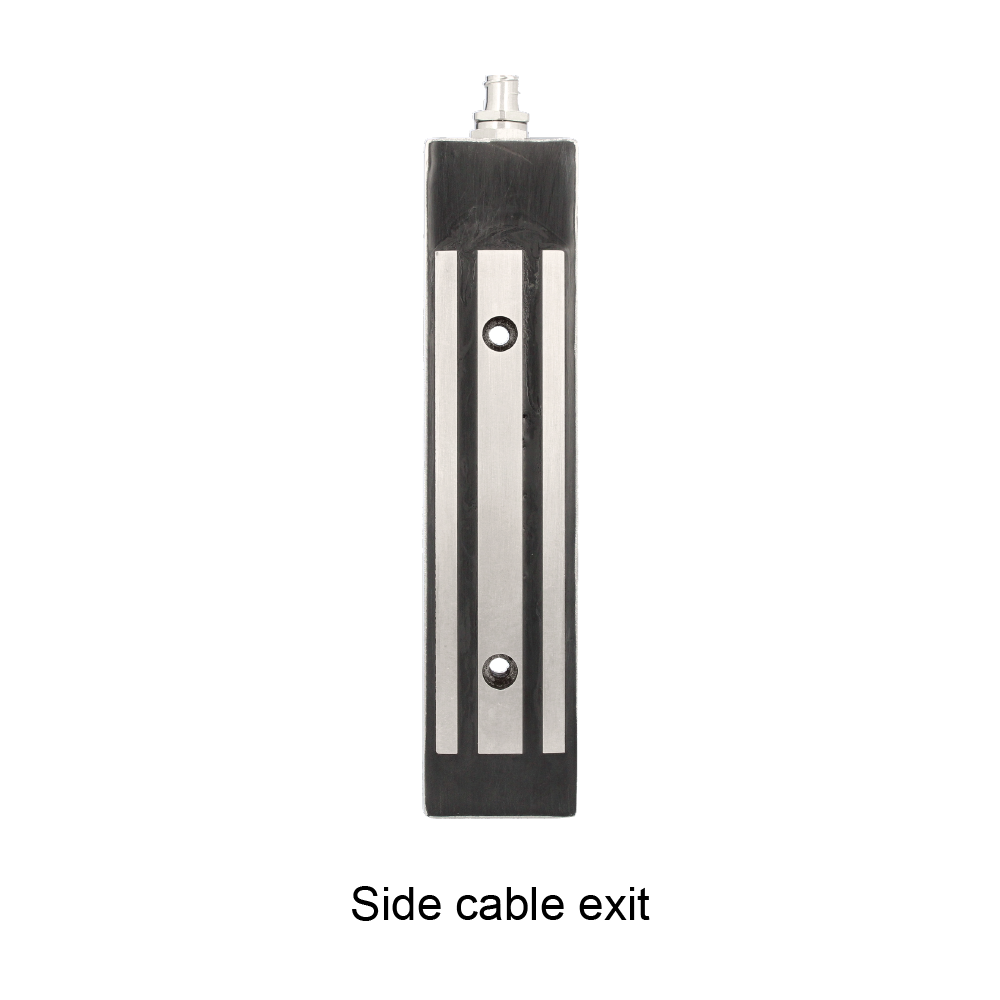

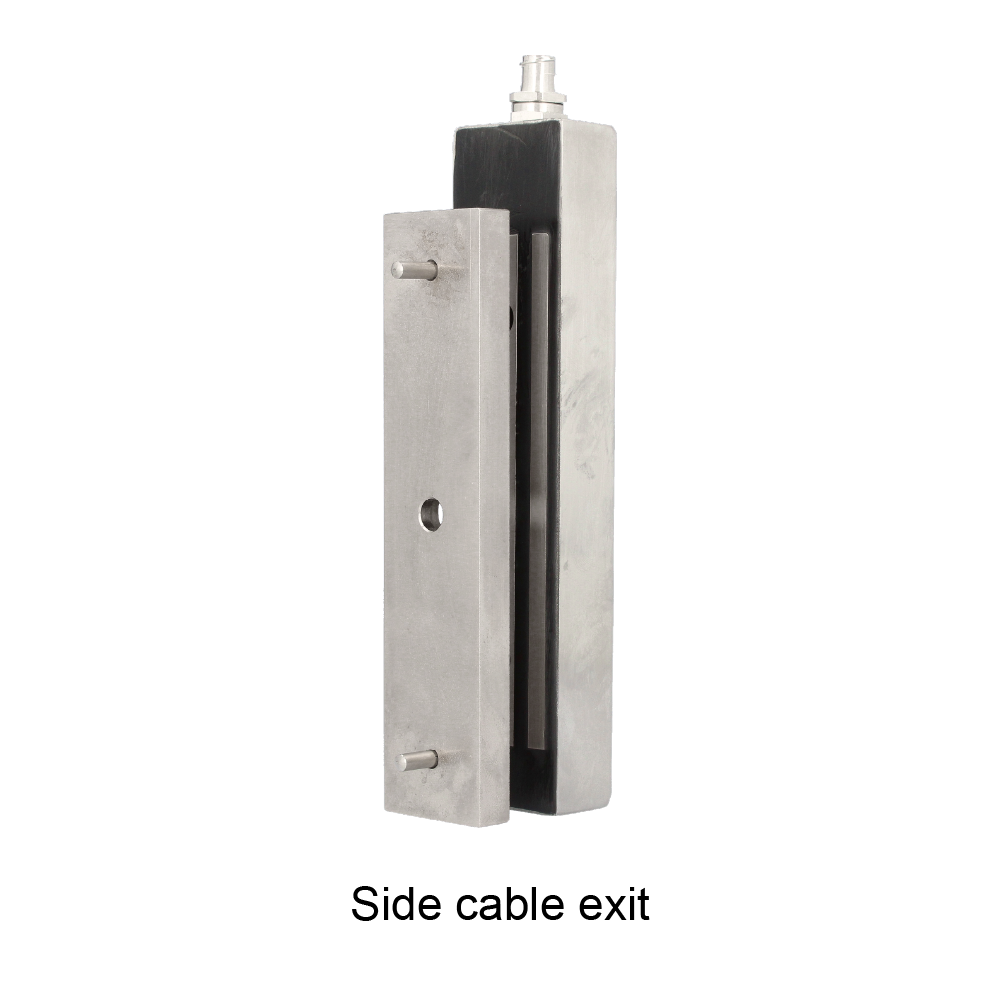

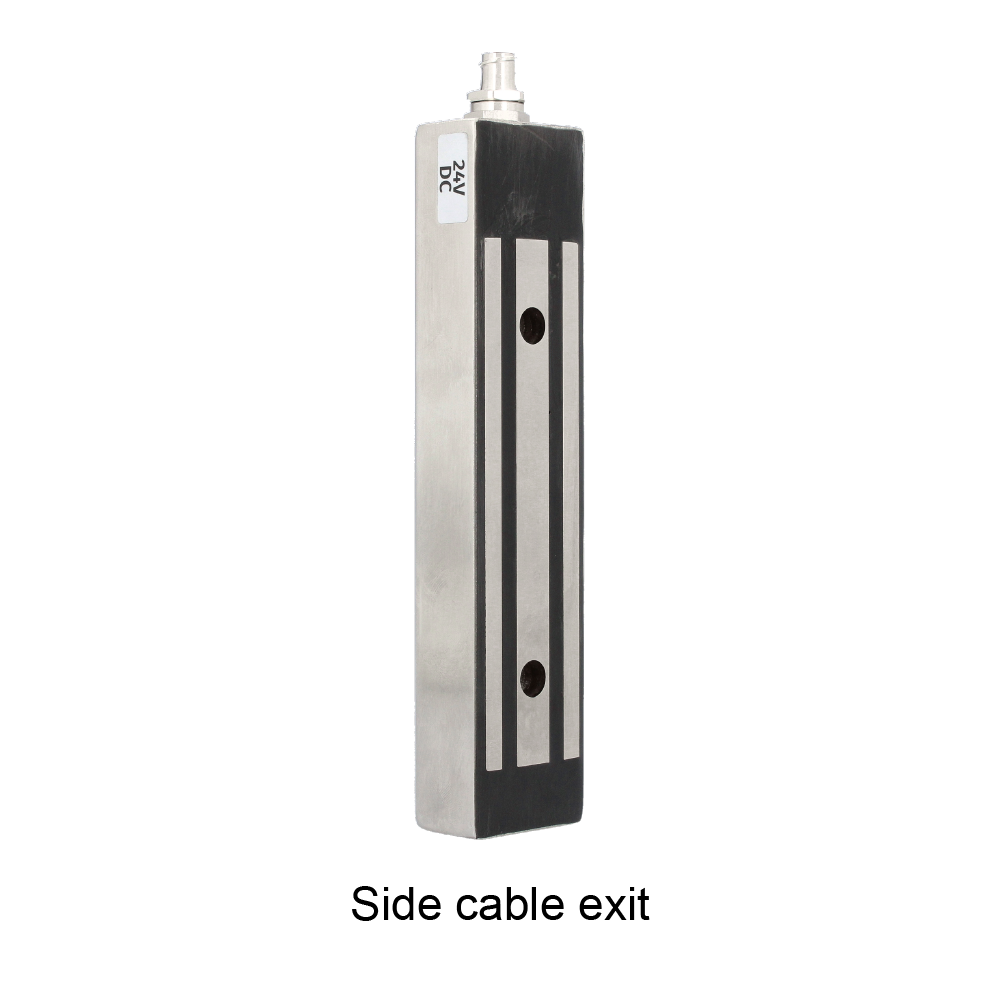

MS20-WS-U-12V-RESlim weatherproof maglock, 250kg, unmonitored, 12V, with rear cable exit
MS20-WS-U-24VSlim weatherproof maglock, 250kg, unmonitored, 24V
MS20-WS-UR-24VSlim weatherproof maglock, 250kg, unmonitored, 24V, with door status
MS20-WS-H-12VSlim weatherproof maglock, 250kg, monitored, 12V
MS20-WS-HR-12VSlim weatherproof maglock, 250kg, monitored, 12V, with door status
MS20-WS-H-24VSlim weatherproof maglock, 250kg, monitored, 24V
MS20-WS-HR-24VSlim weatherproof maglock, 250kg, monitored, 24V, with door status
Holding Force250kg
ConfigurationSingle
MountingSurface
MonitoredOptional
Door StatusOptional
Power Supply12/24Vdc
Consumption250mA @ 12Vdc / 500mA @ 24Vdc
Surface MaterialStainless steel housing
Height200mm
Width47mm
Depth27mm
Armature Plate Dimensions175 x 40 x 12 mm
