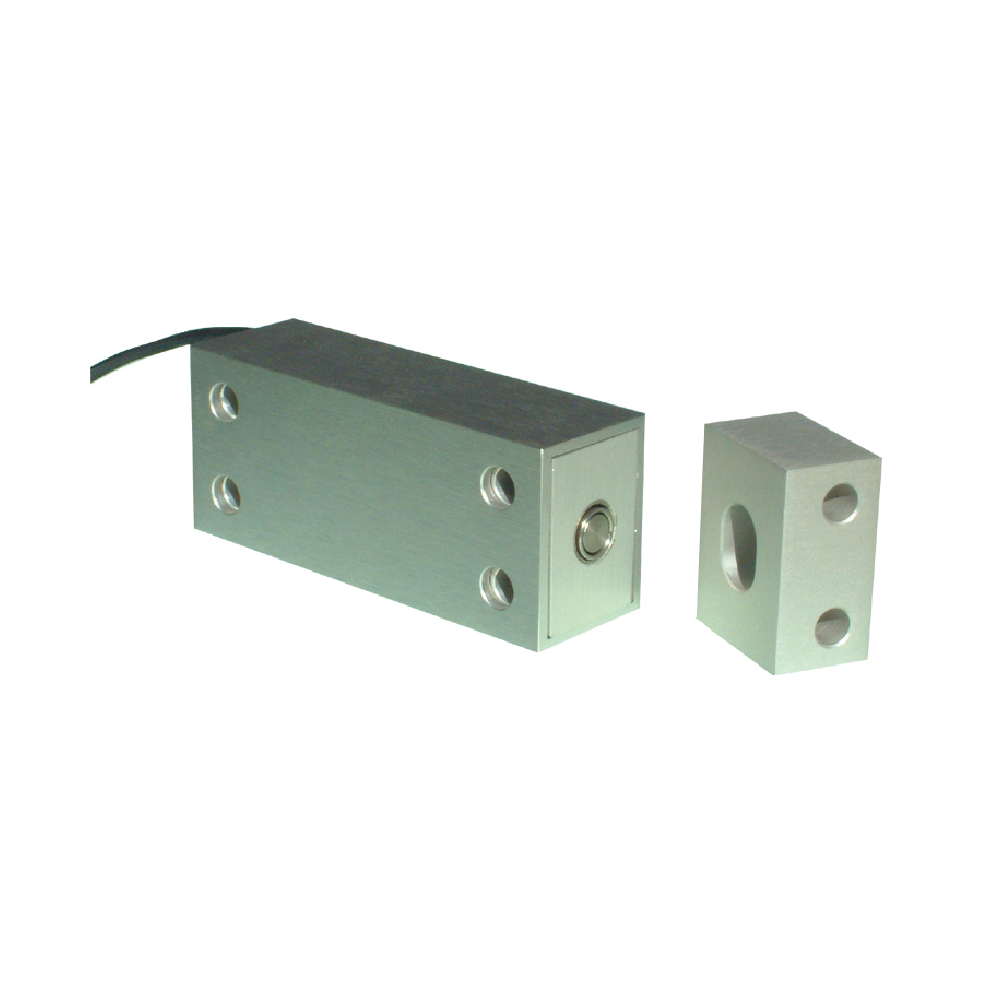

Solenoid Bolts

These solenoid bolts feature a grained and natural anodised housing, paired with a stainless steel bolt running in a low-friction PTFE bearing for smooth operation. The compact design offers long bolt movement, providing secure locking in a small footprint. Suitable for vertical or horizontal fixing, with cable exit options from either the top or rear, they offer excellent flexibility for a wide range of installations.
MSSL-AFail safe solenoid bolt,120kg
KP-MSSLSurface mount fail safe solenoid bolt with flat keeper
MSSL-BFail secure solenoid bolt, 120kg
MountingVertical or horizontal fixing
MonitoringNo
Door StatusNo
Power Supply12/24Vdc
Consumption450-900mA @ 12Vdc, 224-450mA @ 24Vdc
Surface MaterialAnodised aluminium housing
Product Height (mm)120mm
Product Width (mm)50mm
Product Depth (mm)38mm
×
