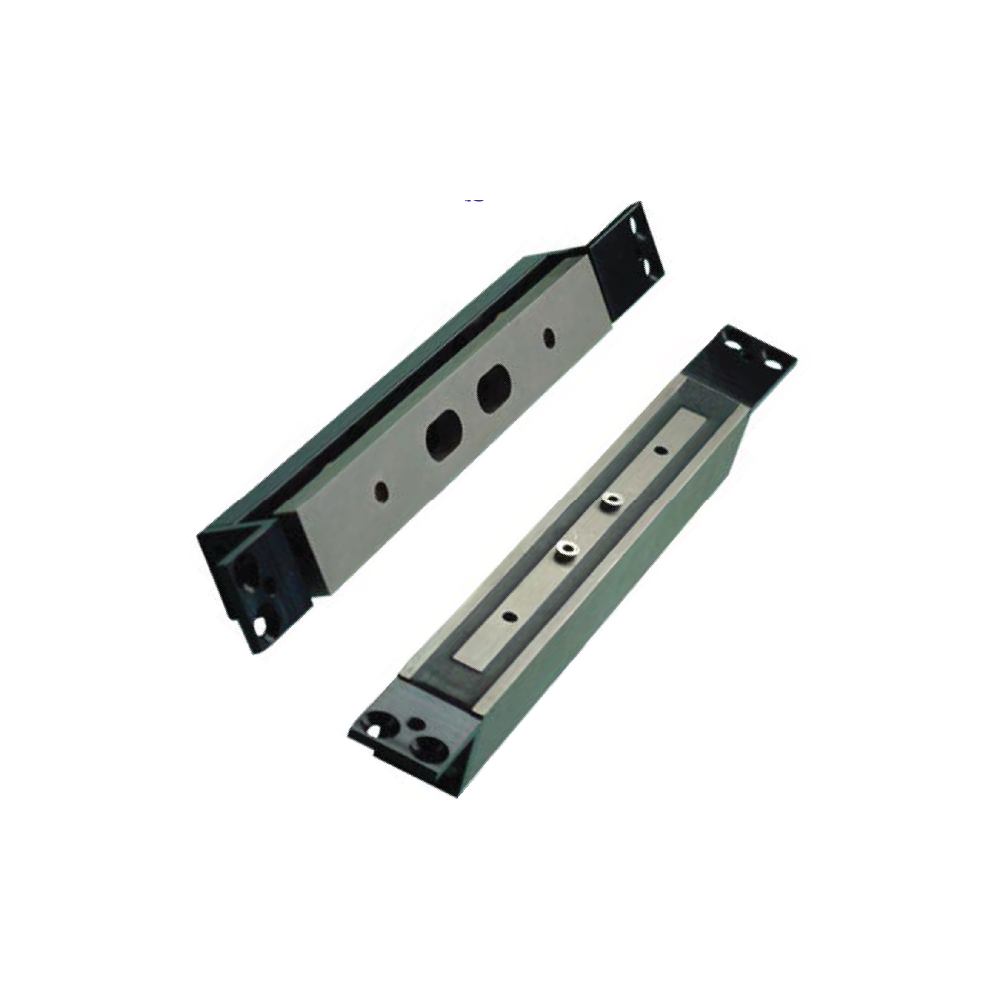

MS40 Shearlock
Flush mount shearlock, 25mm width, monitored, 1000kg shear force
The MS40 shearlock is designed for applications where discreet, high-security locking is required, particularly on glass doors with limited top rail space. Invisible when the door is closed, it provides a clean and unobtrusive finish. Despite its concealed design, it delivers a high holding force for robust and reliable security.
MS40-SF-HRFlush mount shearlock, 25mm width, monitored, 1000kg shear force
Holding Force1000kg
MountingFlush
MonitoringYes
Door StatusYes
Power Supply12/24Vdc
Consumption1.5A pull in (2 secs), 500mA continuous hold
Surface MaterialNickel plated mild steel
Product Height (mm)180mm
Product Width (mm)25mm
Product Depth (mm)25mm
