Resettable Emergency Door Releases
The CP2 and CP3 emergency door releases provide a reliable, resettable solution for immediate unlocking of electronically secured doors in emergencies. Available in double-pole (CP2) and triple-pole (CP3) configurations, these surface-mounted devices fit standard UK back-boxes for easy installation and include a reset key, making them ideal for safe, internal use in high-priority access control environments. Additionally, the CP3 includes a light and sounder to clearly signify emergency activation.

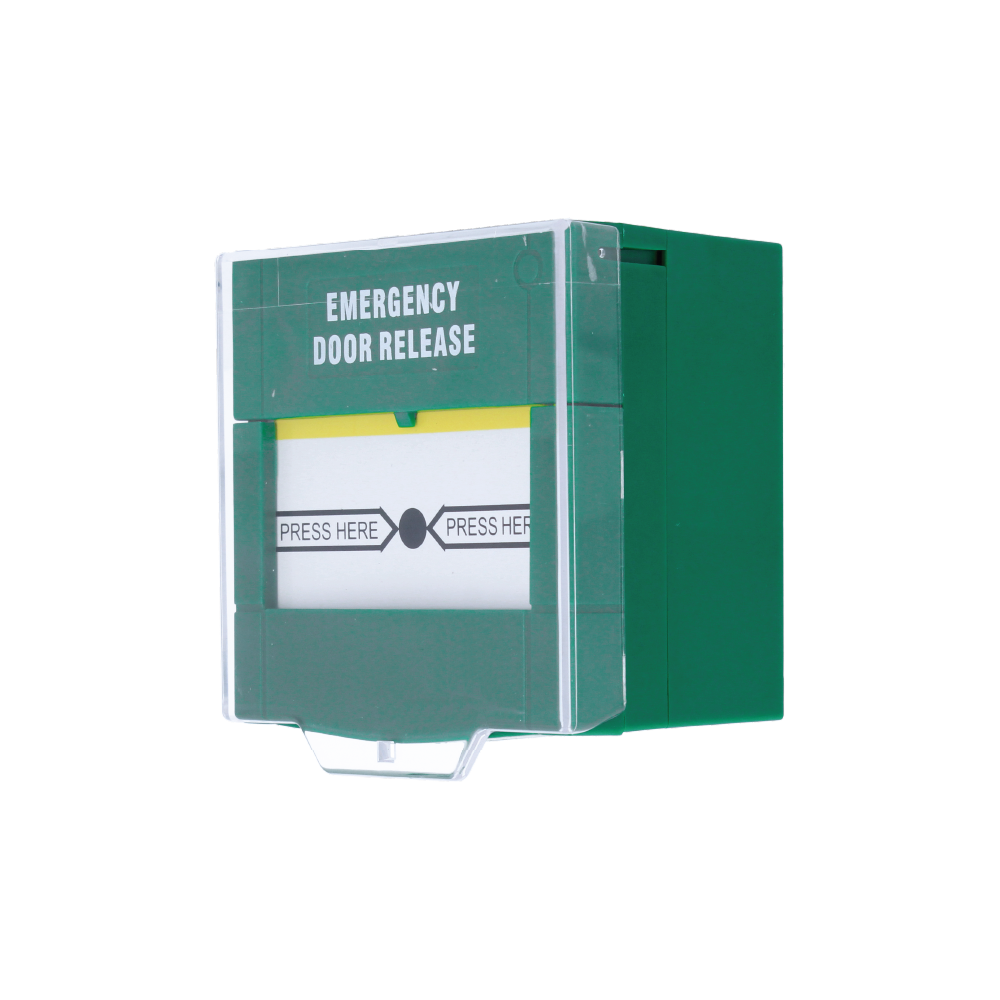

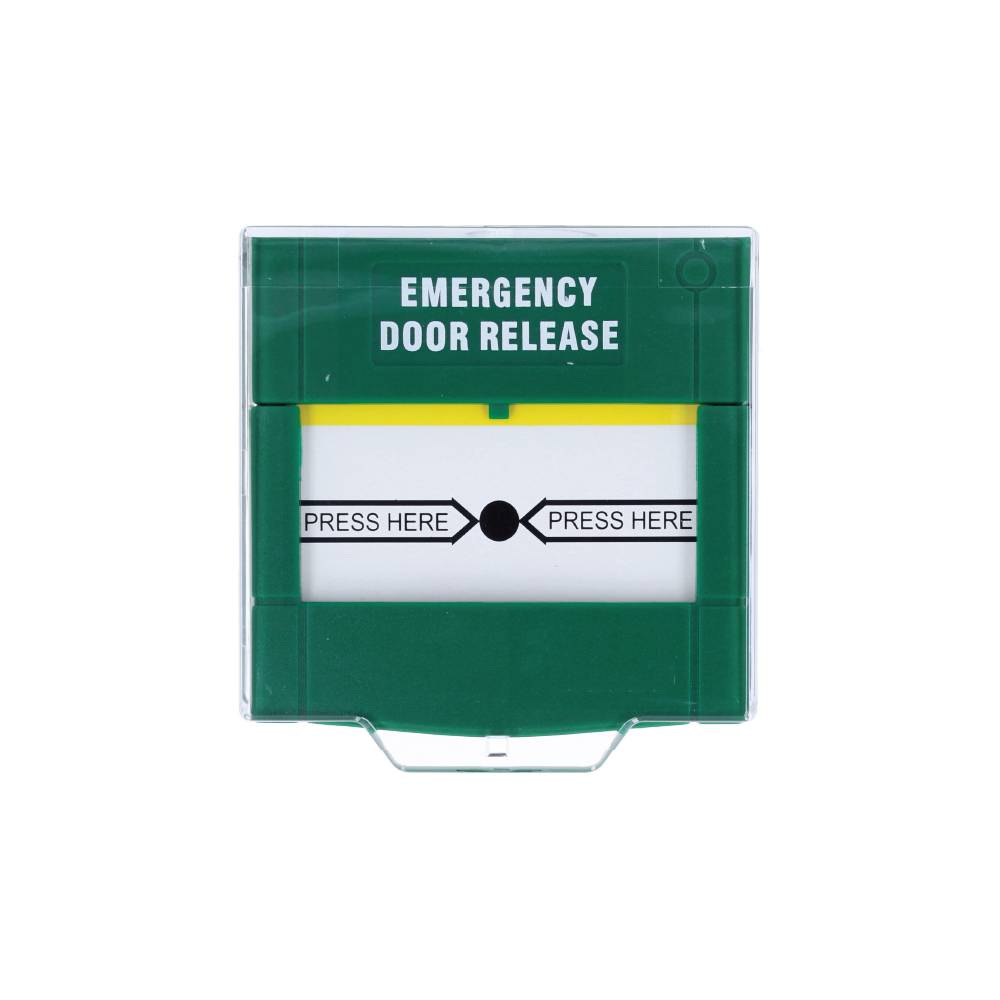

CP2Double-pole resettable emergency door release
CP3Triple-pole resettable emergency door release with light and sounder
MountingSurface
Min Temperature (°C)-30°C
Max Temperature (°C)+70°C
Recommended Mounting Height900 to 1,100mm
Max Voltage (V)30 Vdc (CP2) / 24Vdc (CP3)
Contact Rating2A (CP2) / 3A (CP3)
Surface MaterialABS, PC (lid)
ColourGreen
Dimensions (CP2)86 x 86 x 50mm
Dimensions (CP3)90 x 95 x 45mm
Product Weight (g)150g (CP2) / 170g (CP3)
