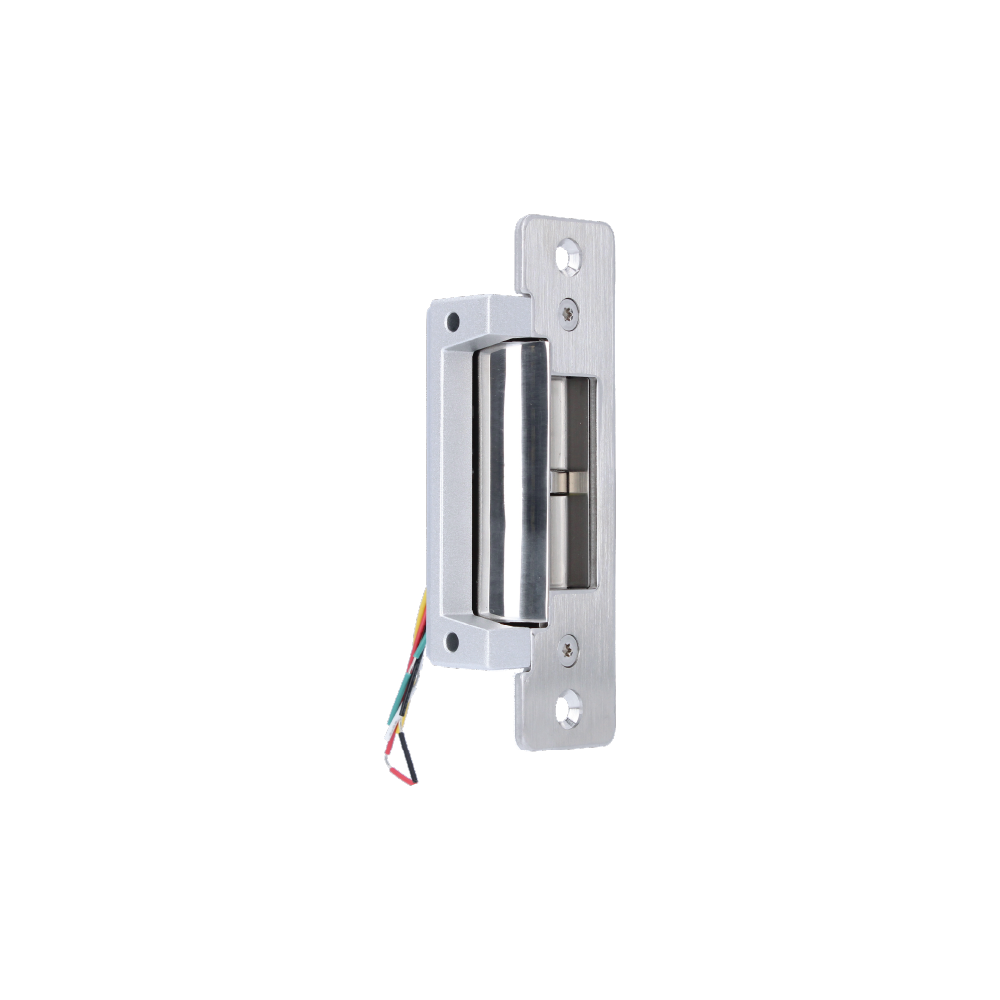

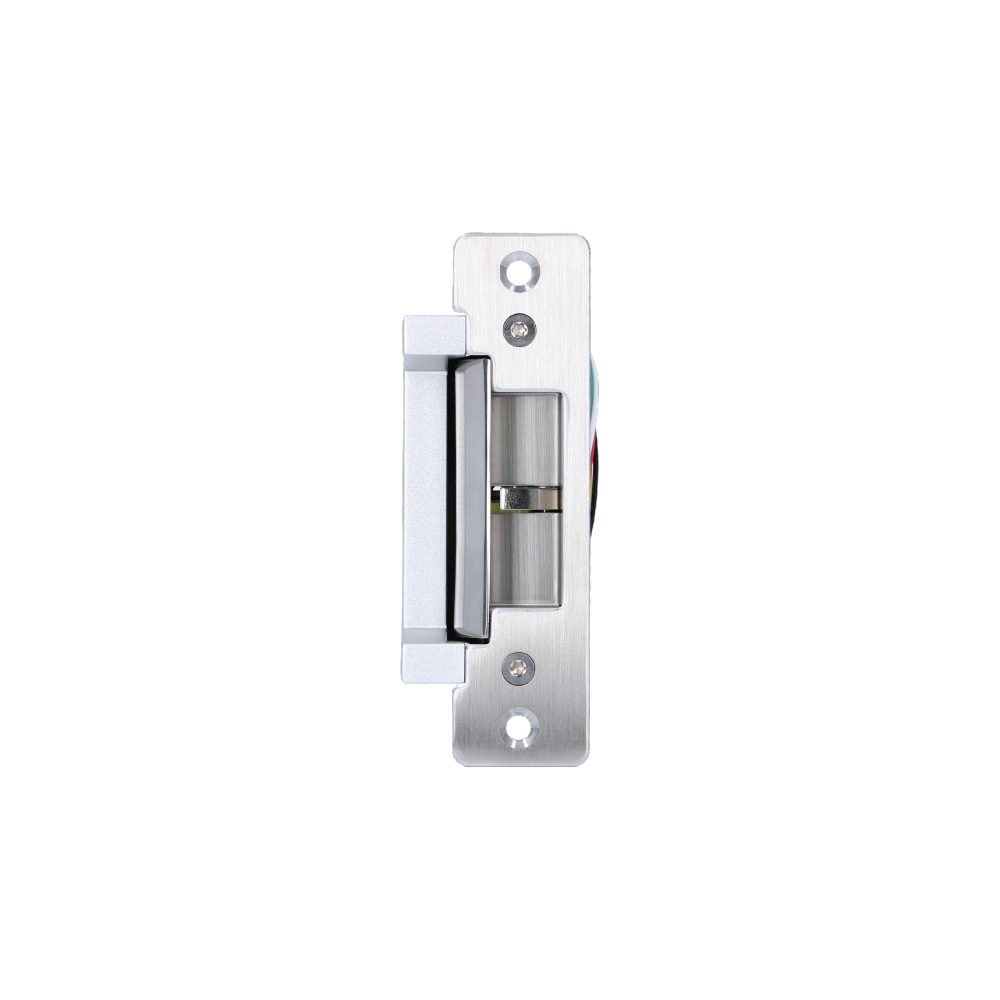

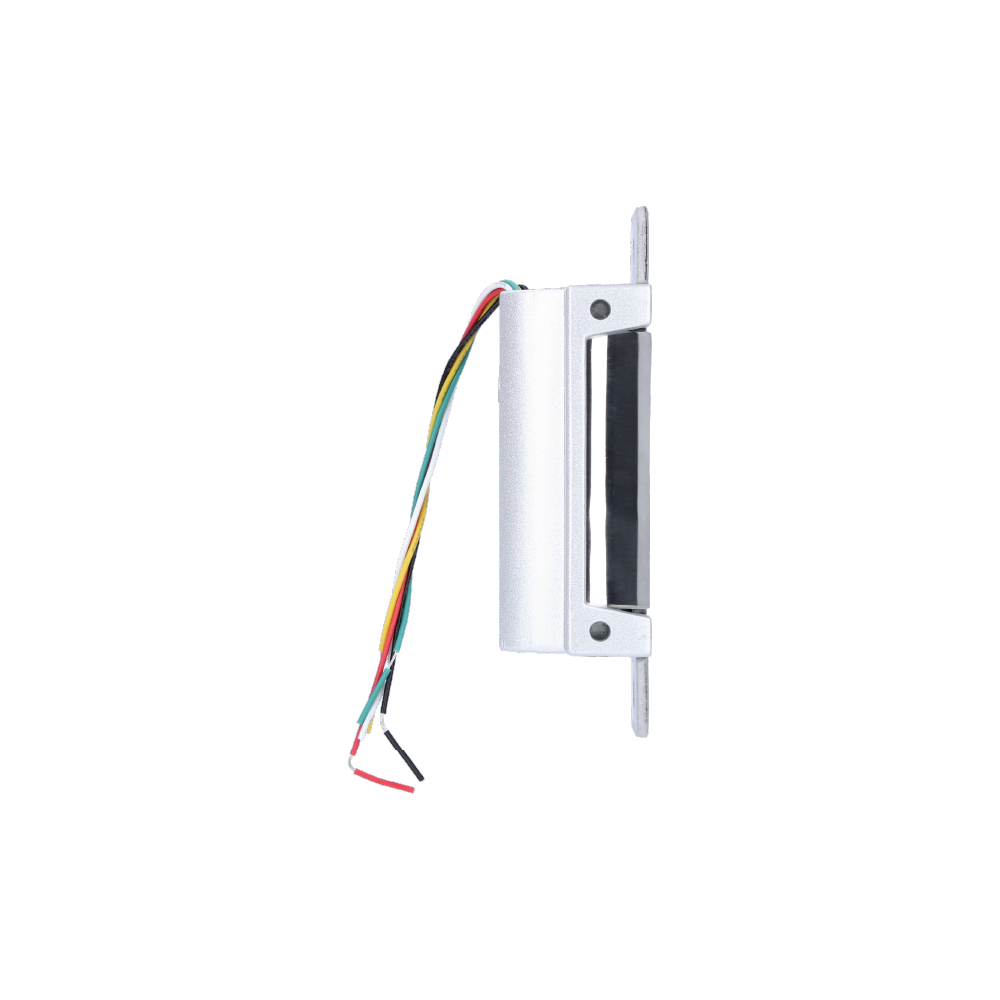

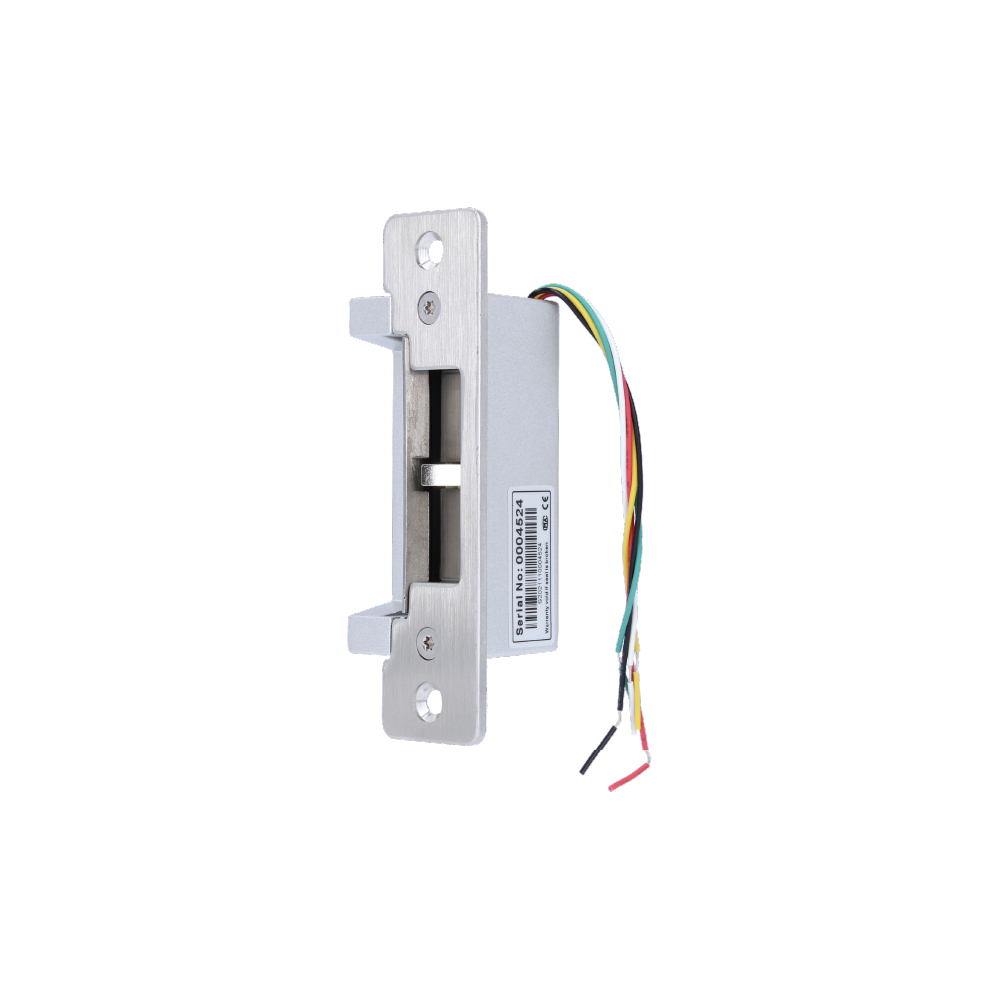

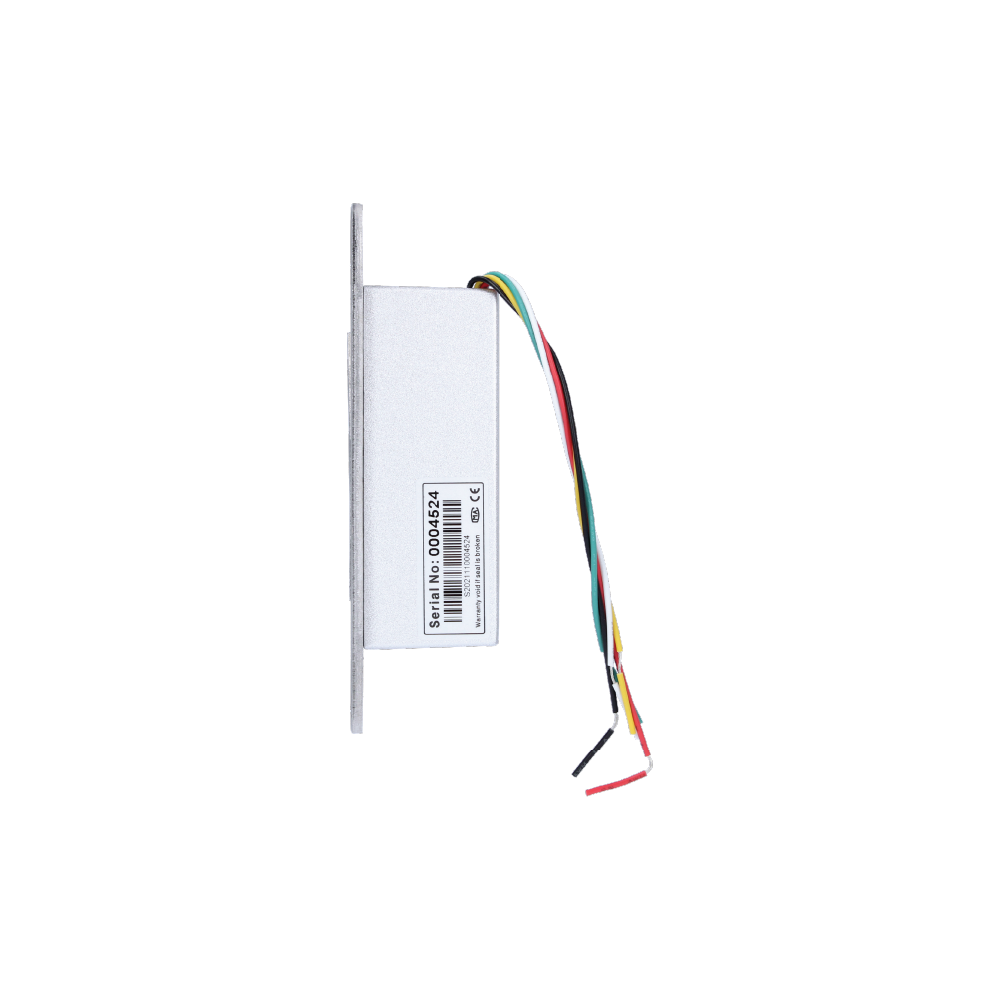

ANSI-Style Strike, 12Vdc, Monitored
This ANSI-style monitored electric strike adjusts between fail safe and fail secure as needed. Suitable for wooden or metal doors, this strike is robust, with a stainless steel jaw for added strength. The ANSI is supplied with both a long and a short faceplate as well as a full fixing kit for metal doors, making it a flexible solution for a huge range of projects.
ANSIANSI-style strike, 12Vdc, monitored
ConfigurationFail safe / fail secure reversible
Holding Force750kg
MountingMortice
Min Temperature (°C)-15°C
Max Temperature (°C)+40°C
Jaw TypeAdjustable
Power Supply12Vdc
Consumption250mA
Surface MaterialStainless steel (jaw)
Product Height (mm)165mm (long faceplate) / 124mm (short faceplate)
Product Width (mm)43mm
Product Depth (mm)38mm
Faceplate Dimensions165 / 32 / 2 (long faceplate), 124 / 32 / 2 (short faceplate)
Weight350g
