MS15 Slim Maglocks
MS15 single or double slim maglocks
The MS15 slim maglock range combines a sleek profile with robust performance, making it ideal for modern access control installations. The electroless nickel-plated magnet is easy to clean, while the satin anodised housing offers excellent durability. Simple fixings allow for quick and straightforward installation, with optional RAL paint finishes available. High holding force ensures reliable security across a wide range of applications.

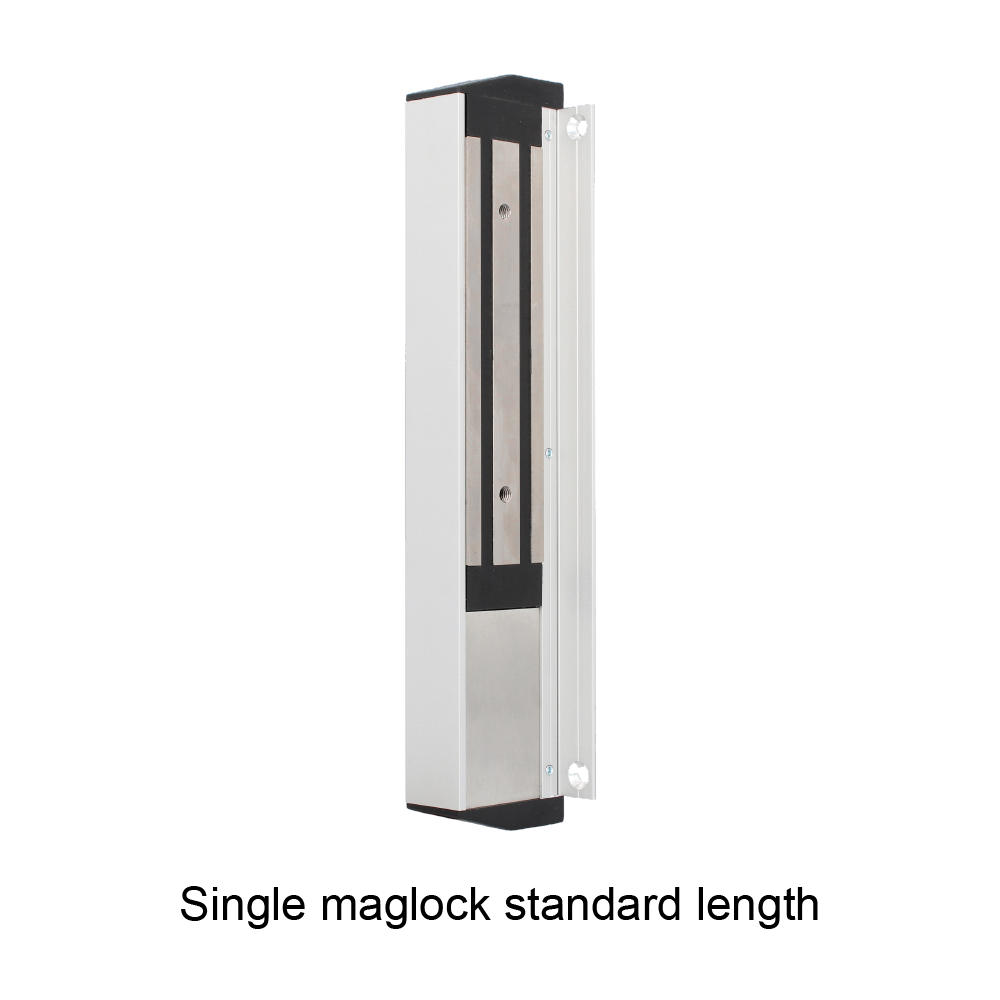

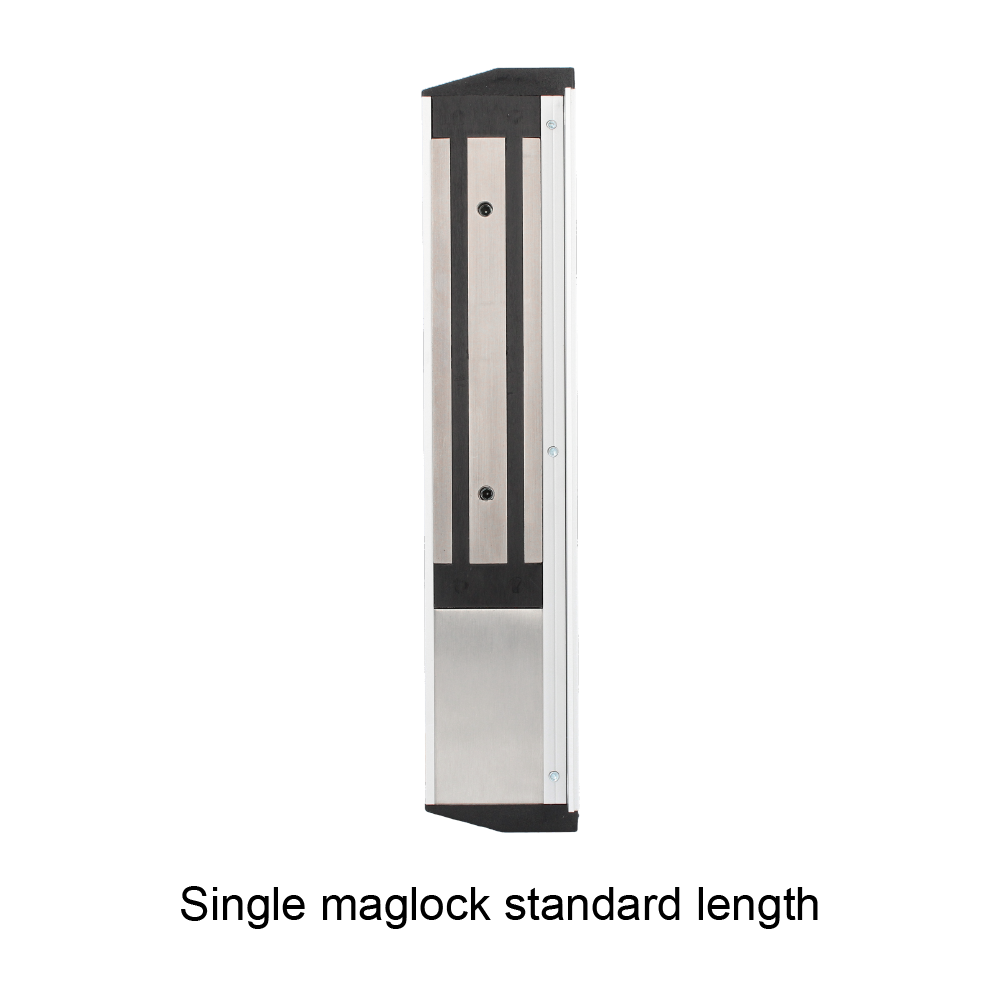

MS15-SS-U-MVSingle slim maglock, surface mount, unmonitored
MS15-SS-UR-MVSingle slim maglock, surface mount, unmonitored, with door status

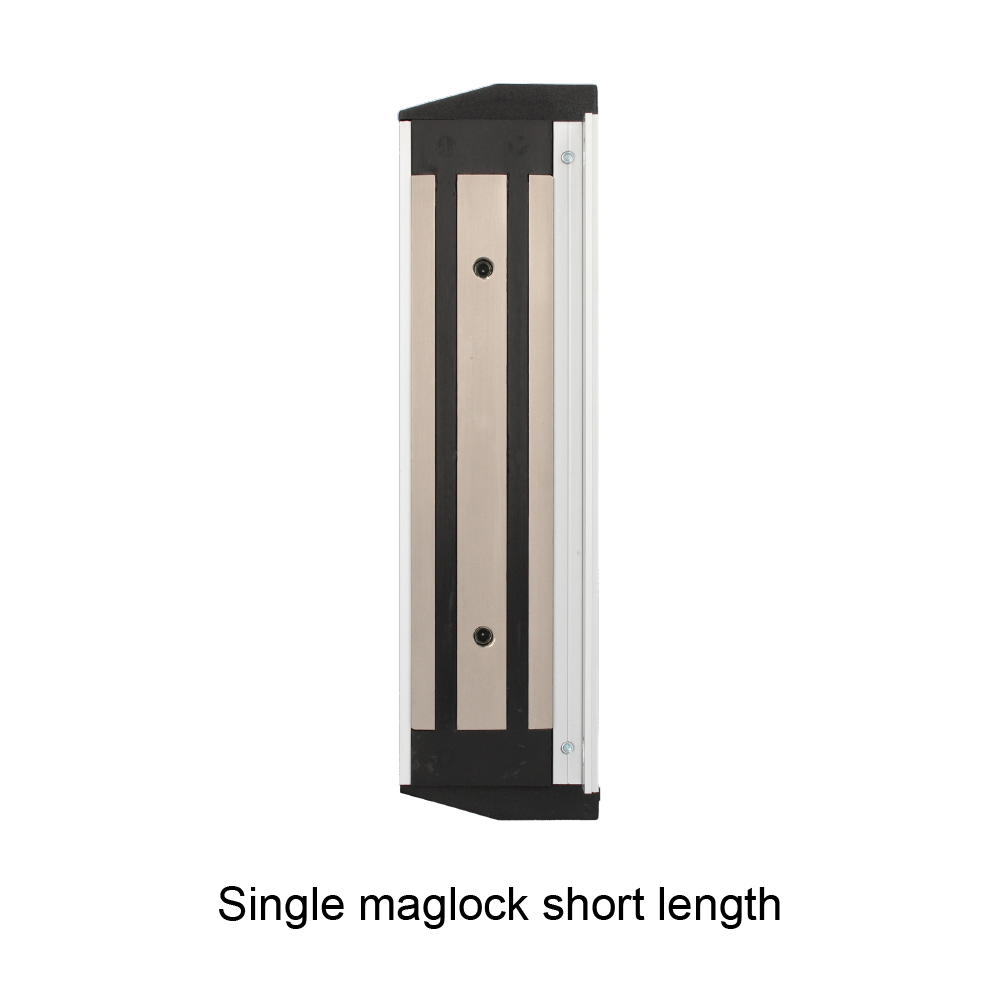

MS15-SS-U-MV200MMShort single slim maglock, surface mount, unmonitored, 200mm
MS15-SS-H-MVSingle slim maglock, surface mount, monitored
MS15-SS-HR-MVSingle slim maglock, surface mount, monitored, with door status
MS15-SS-UR-MV200MMShort single slim maglock, surface mount, unmonitored, with door status, 200mm

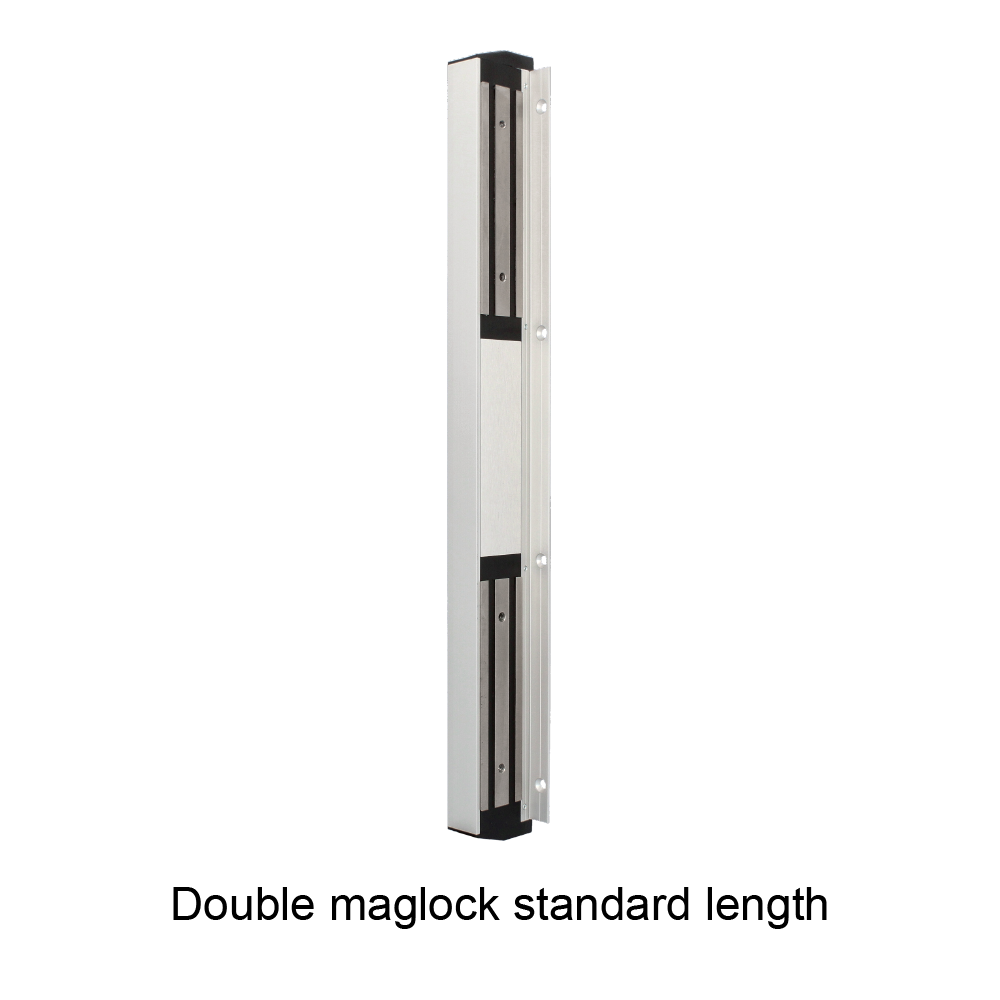

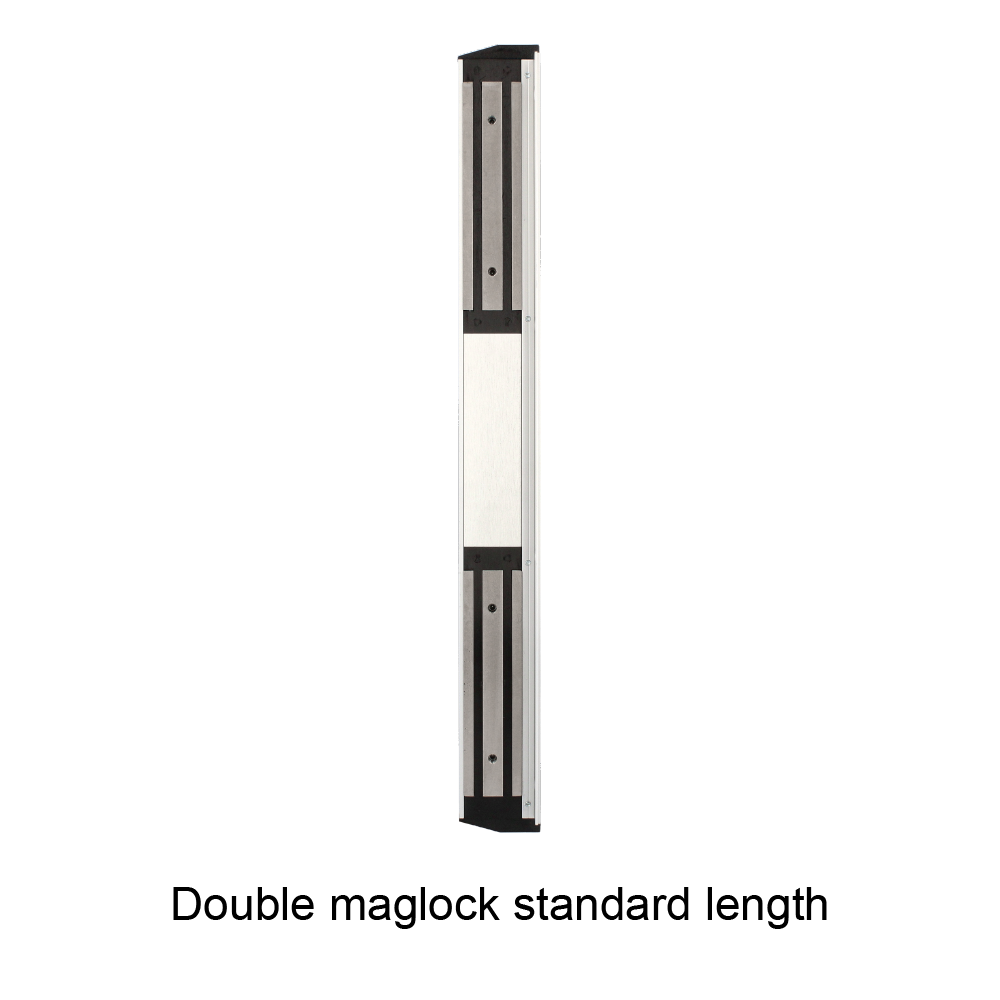

MS15-DS-U-MVDouble slim maglock, surface mount, unmonitored
MS15-DS-UR-MVDouble slim maglock, surface mount, unmonitored, with door status
MS15-DS-U-MV400MMShort double slim maglock, surface mount, unmonitored, 400mm
MS15-DS-UR-MV400MMShort double slim maglock, surface mount, unmonitored, with door status, 400mm
MS15-DS-H-MVDouble slim maglock, surface mount, monitored
MS15-DS-HR-MVDouble slim maglock, surface mount, monitored, with door status
ConfigurationSingle or Double Magnets
Holding Force300kg or 600kg
MountingSurface
MonitoredOptional
Door StatusOptional
Power Supply12/24Vdc
Consumption250mA @ 12Vdc / 500mA @ 24Vdc
Surface MaterialSatin anodised housing
Height (standard)250 (single) / 500 (double)
Height (short)200 (single) / 400 (double)
Width53
Depth27
