MS30 Weatherproof Maglocks

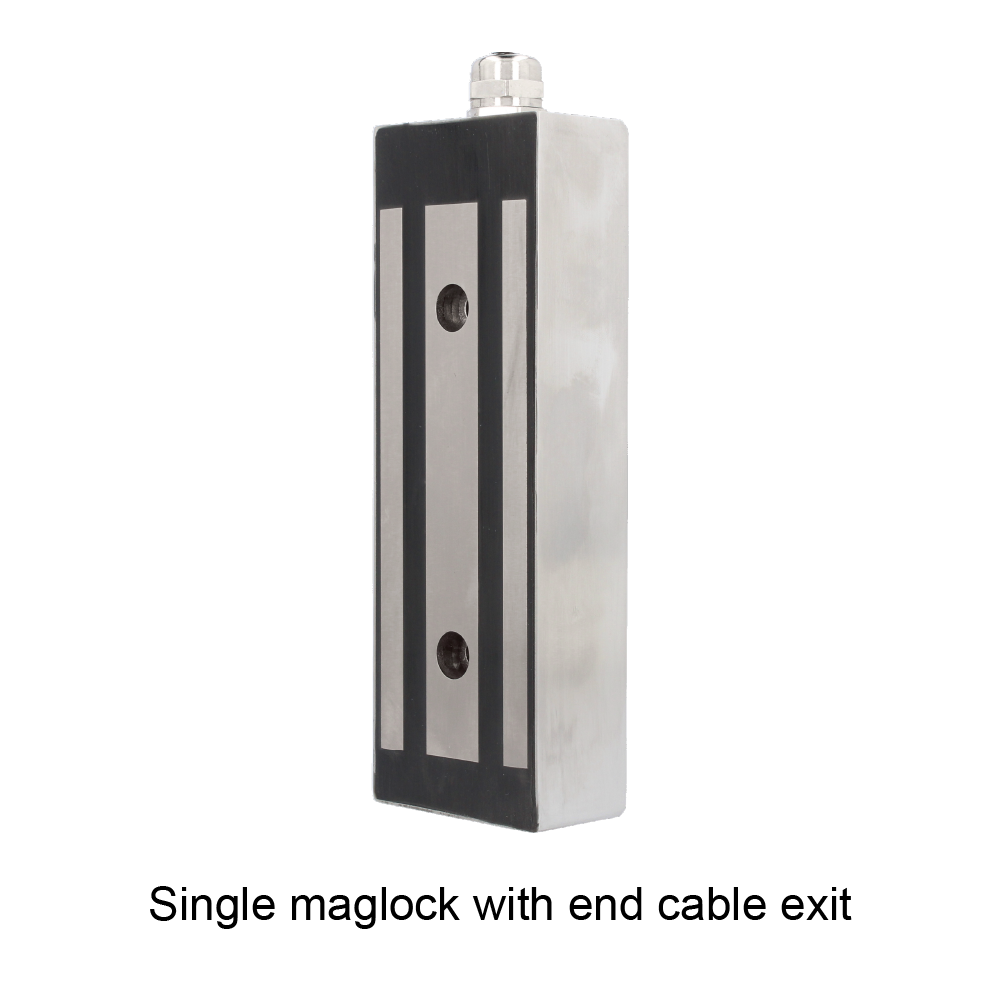

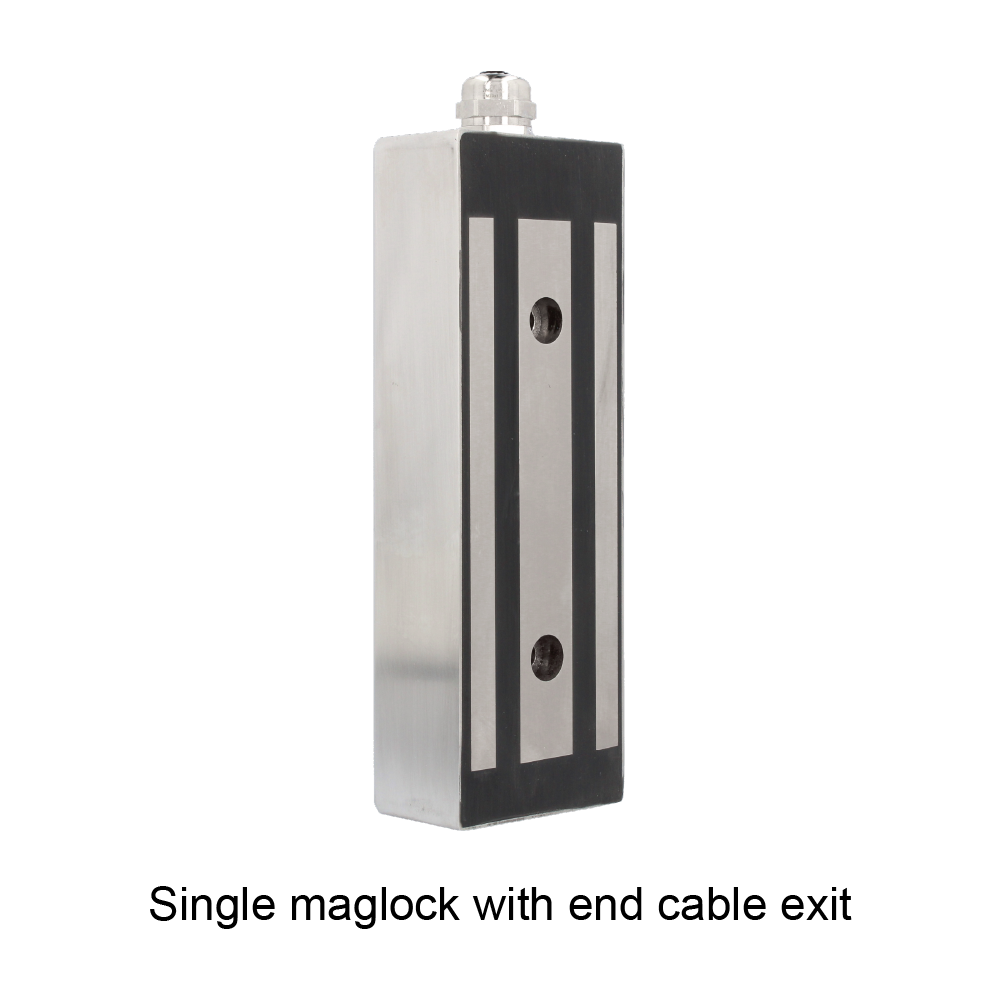

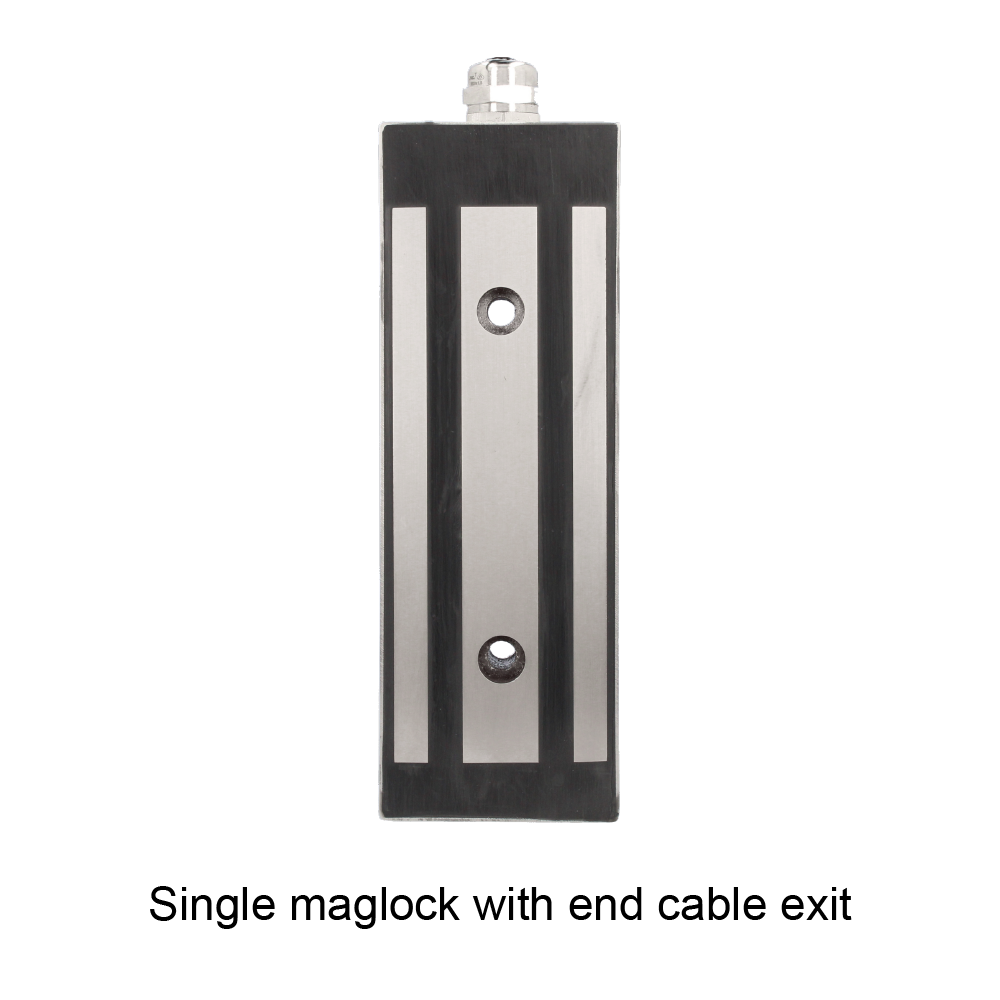

Built for demanding outdoor environments, the MS30 weatherproof maglocks feature a brushed stainless steel case that protects against the effects of weather and corrosion. Available with either an end cable gland or rear cable exit, they offer installation flexibility across different gate designs. These maglocks are ideal for securing pedestrian and vehicle gates where strength and durability are essential.
MS30-WS-U-MVWeatherproof maglock, 500kg, unmonitored
MS30-WS-UR-MVWeatherproof maglock, 500kg, unmonitored, with door status
MS30-WS-U-REWeatherproof maglock, 500kg, unmonitored, with rear cable exit
MS30-WS-H-MVWeatherproof maglock, 500kg, monitored
MS30-WS-HR-MVWeatherproof maglock, 500kg, monitored, with door status
Holding Force500kg
MountingSurface
MonitoringOptional
Door StatusOptional
Power Supply12/24Vdc
Consumption250mA @ 12Vdc / 500mA @ 24Vdc
Surface MaterialStainless steel housing
Product Height (mm)200mm
Product Width (mm)70mm
Product Depth (mm)40mm
