MS5 Single Micro Magnets
MS5 single, surface mount, unmonitored micro cabinet maglocks

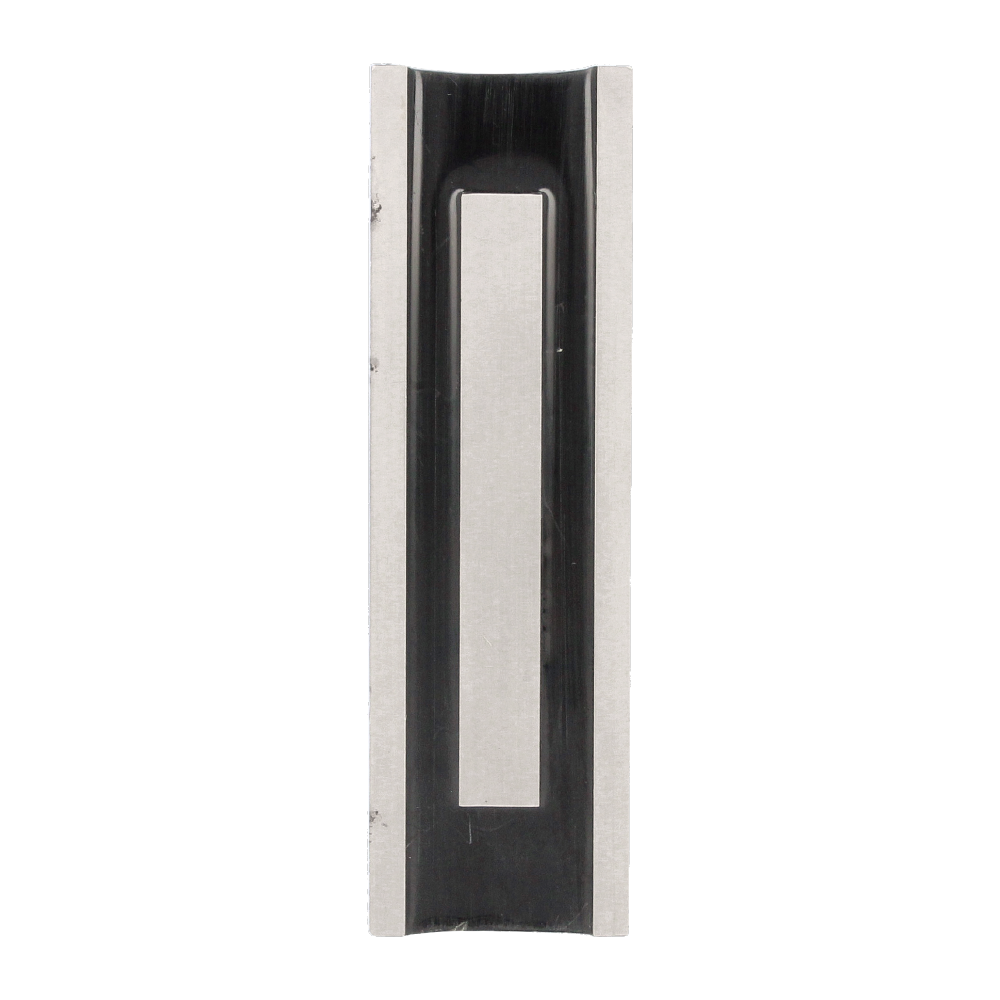

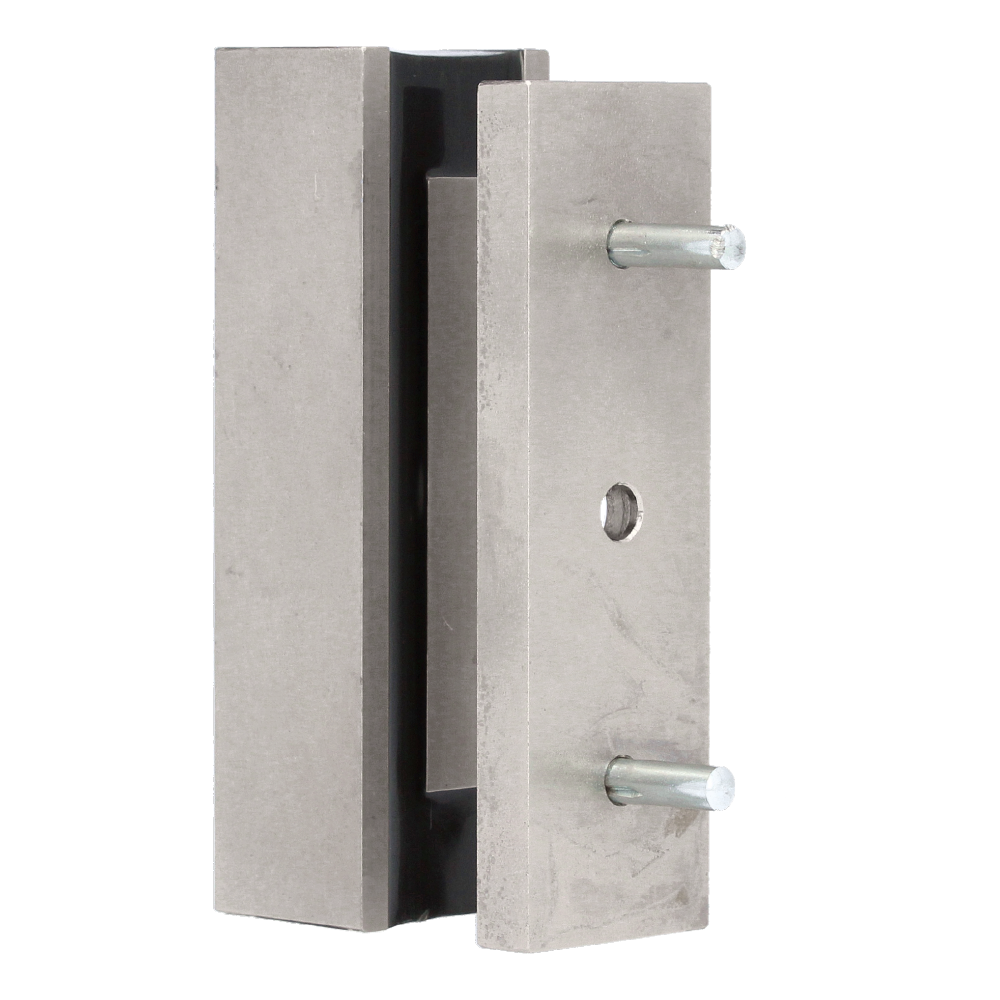

The MS5 single micro magnet is an ultra-compact locking solution, ideal for cabinets and small enclosures. Its very small size and lack of external housing allow for discreet integration into tight spaces. A simple rear fixing makes installation quick and straightforward while maintaining reliable holding performance.

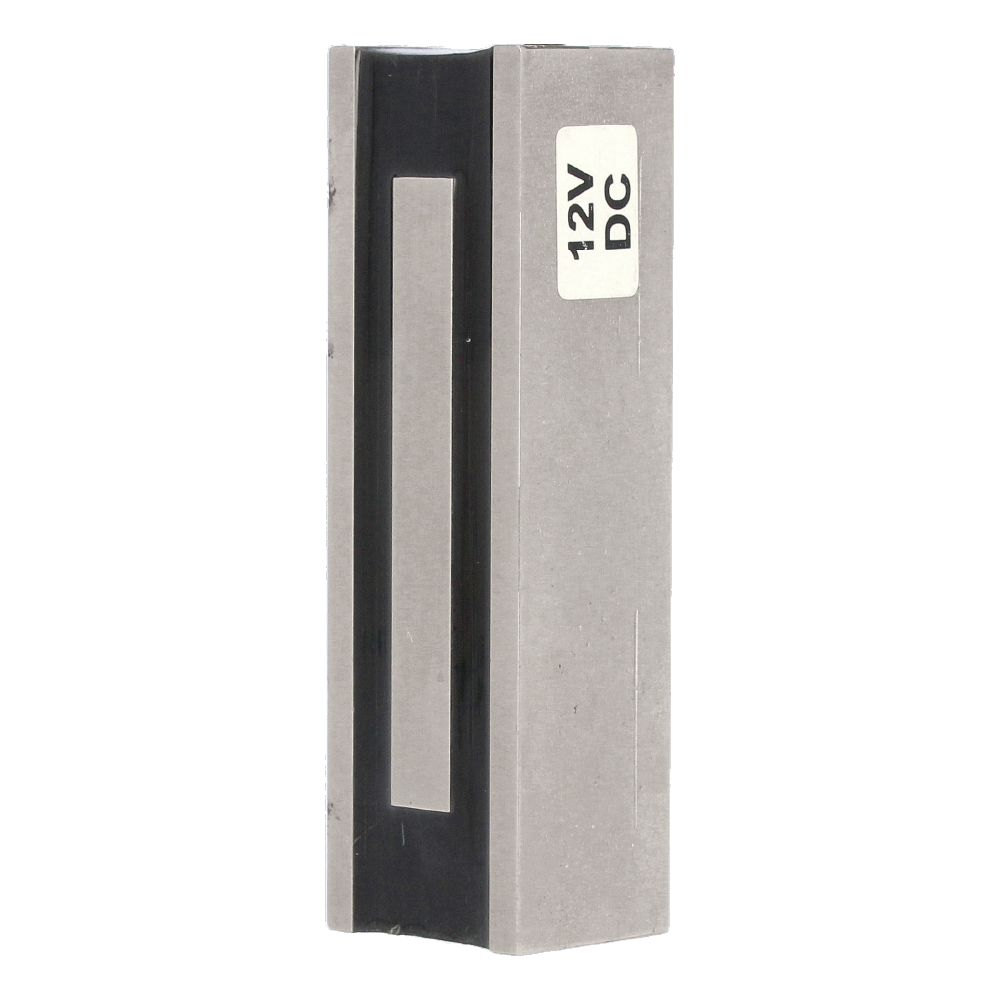

MS5-SS-U-12VSingle micro maglock, surface mount, unmonitored, 12V
MS5-SS-U-24VSingle micro maglock, surface mount, unmonitored, 24V
Holding ForceUp to 100kg
MountingSurface
MonitoringNo
Power Supply12/24Vdc
Consumption (mA)500mA @ 12Vdc / 300mA @ 24Vdc
Surface MaterialNickel plated mild steel
Product Height (mm)100mm
Product Width (mm)30mm
Product Depth (mm)25mm

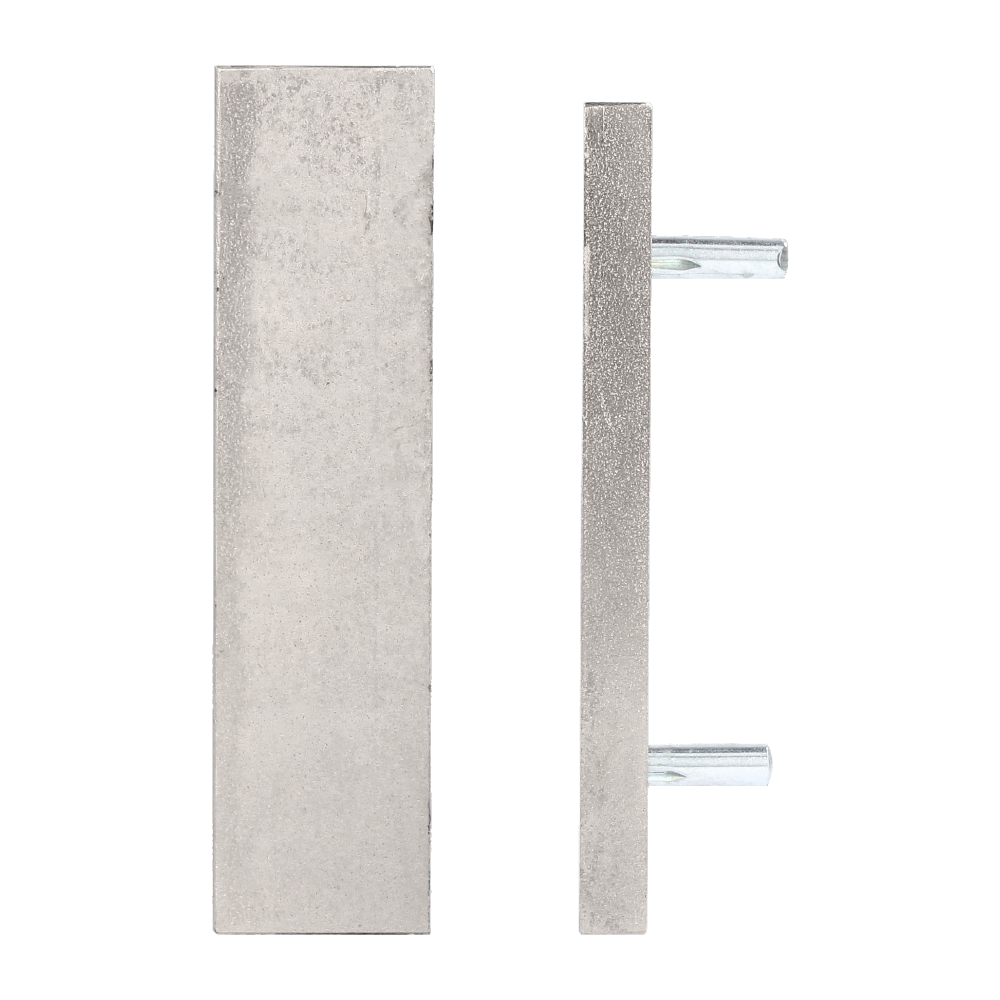

Armature Plate Dimensions (LxWxH)100 x 30 x 8mm
