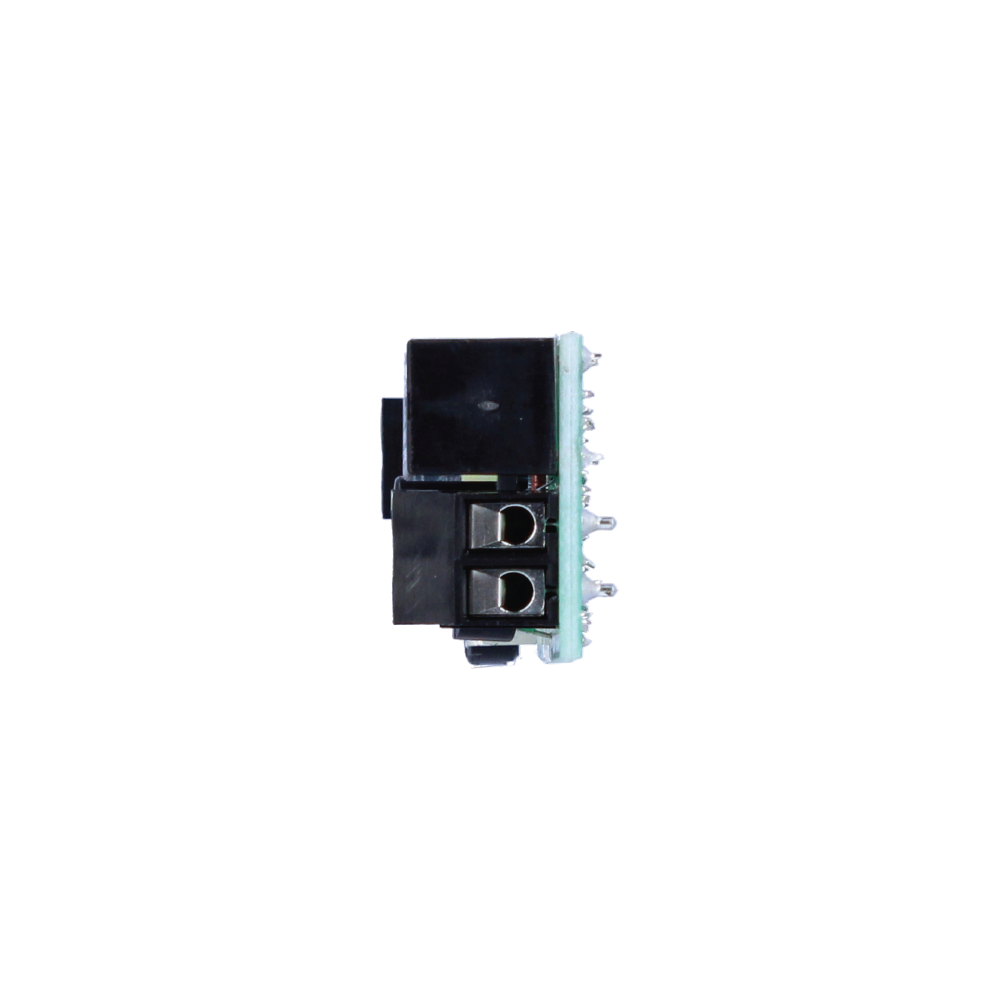

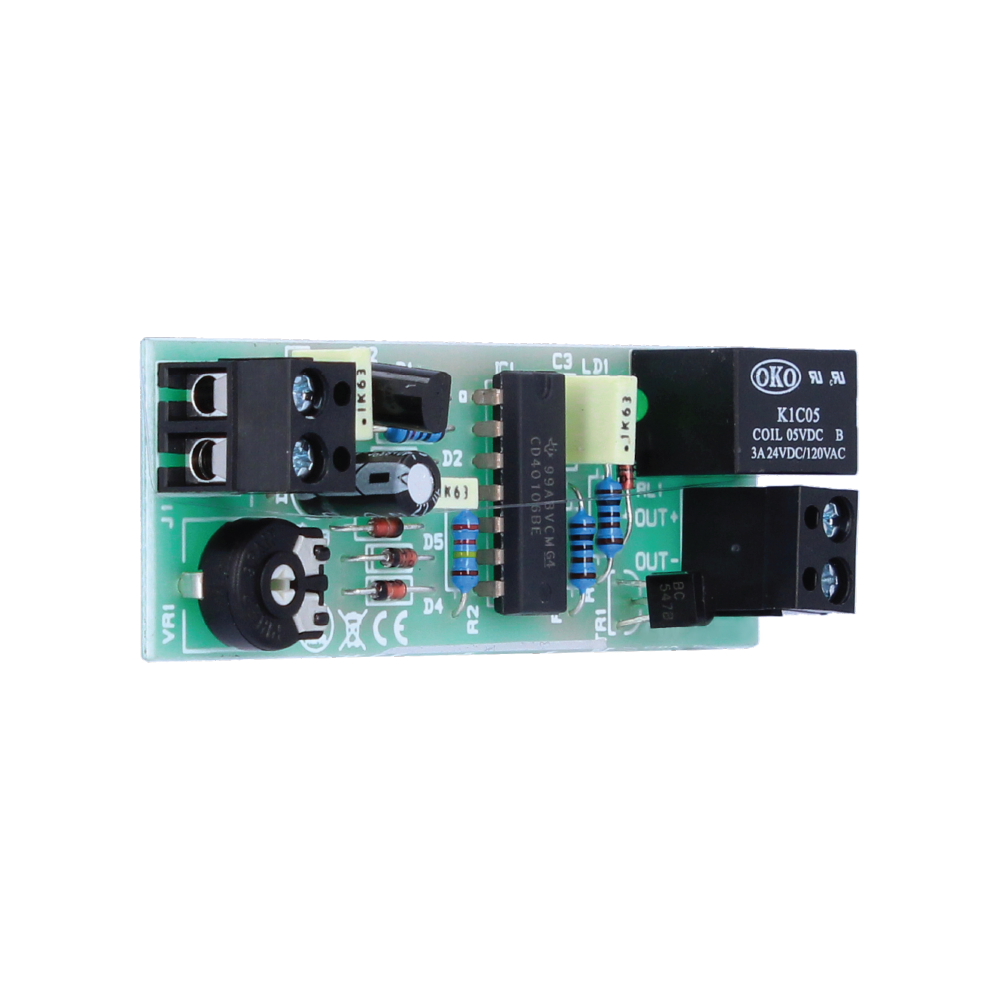

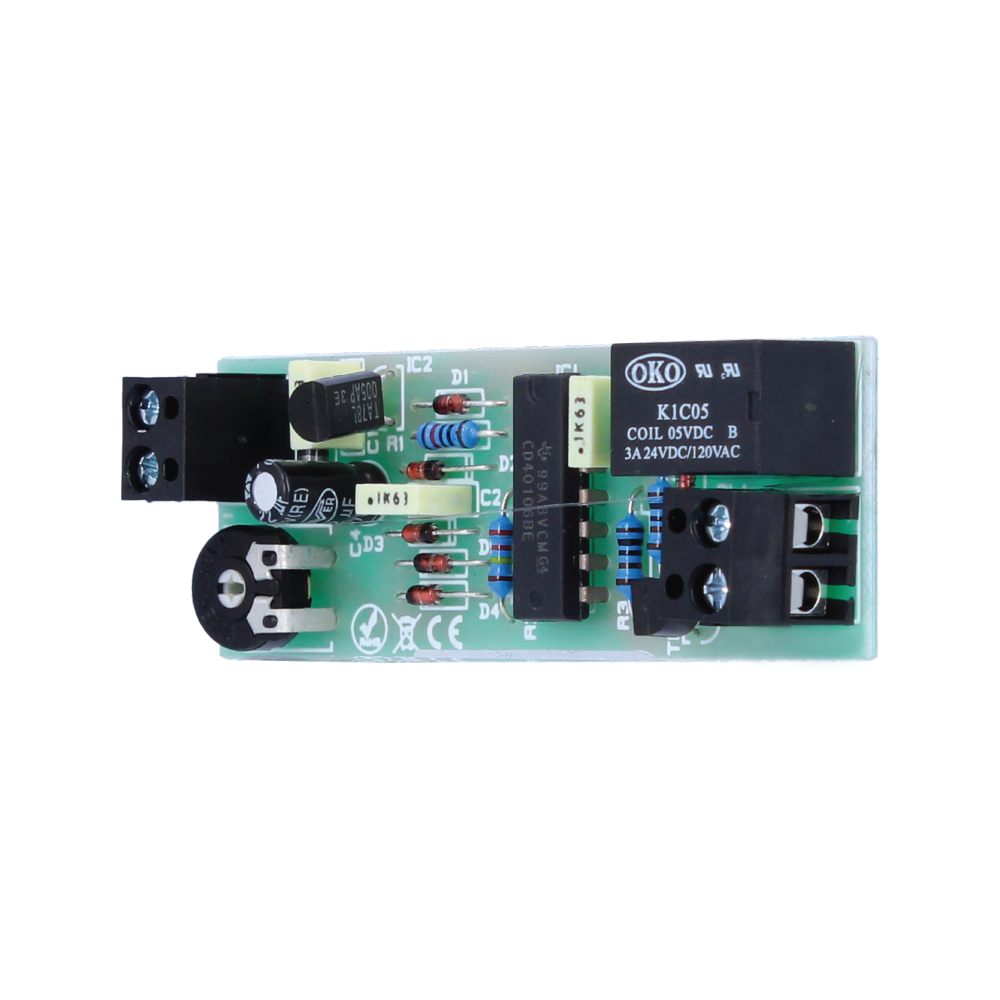

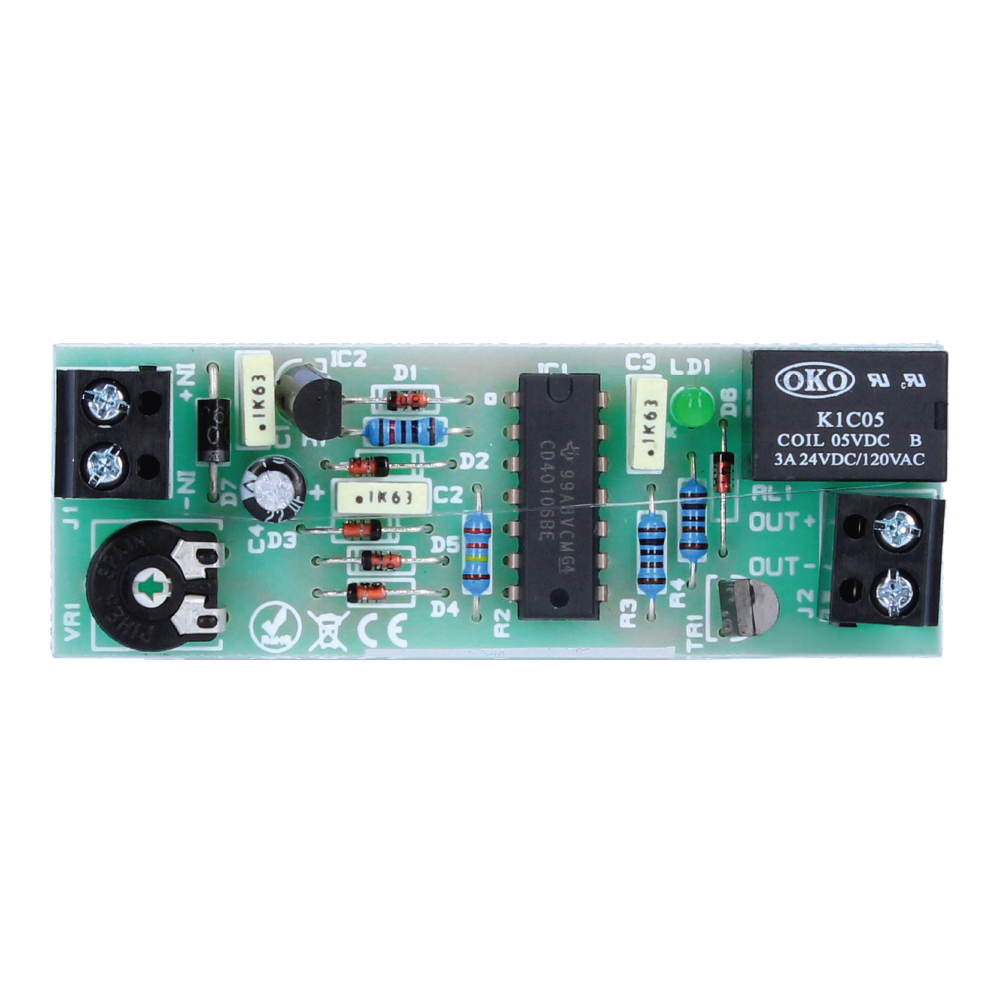

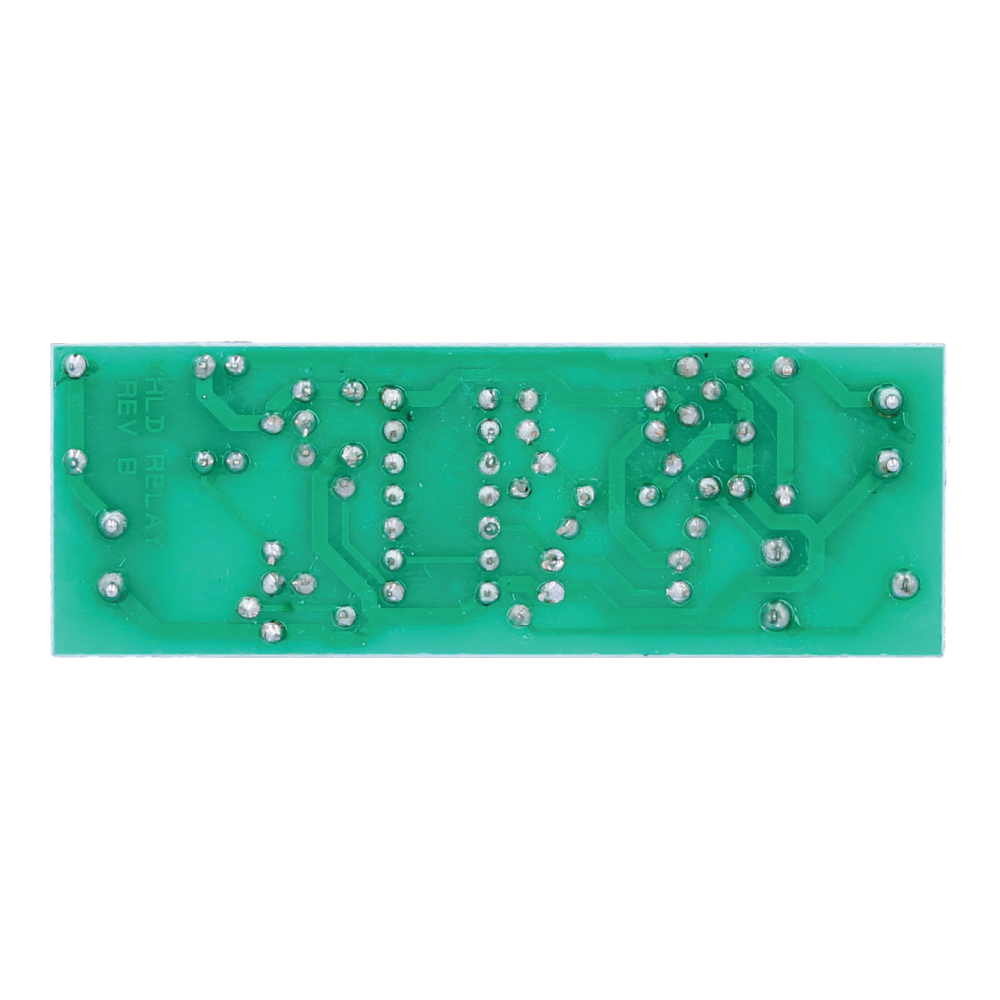

Delay Module for Fail Safe Locks
The VHLD is a convenient delay module designed specifically for use with 12Vdc fail safe locks. It allows simple, controlled lock release without the need for additional relays or external timers, reducing installation complexity. Operated via a simple push button, the module features an adjustable delay timer ranging from 3 to 10 seconds. This makes it an ideal solution for applications requiring controlled egress or delayed release functionality.
VHLDDelay module for fail safe locks
Number of Relays1 x NO/NC
Min. Voltage (V)10 Vdc
Max Voltage (V)15 Vdc
Contact Rating3A @ 24 Vdc
Product Height (mm)65mm
Product Width (mm)24mm
Product Depth (mm)16mm
Product Weight10g
