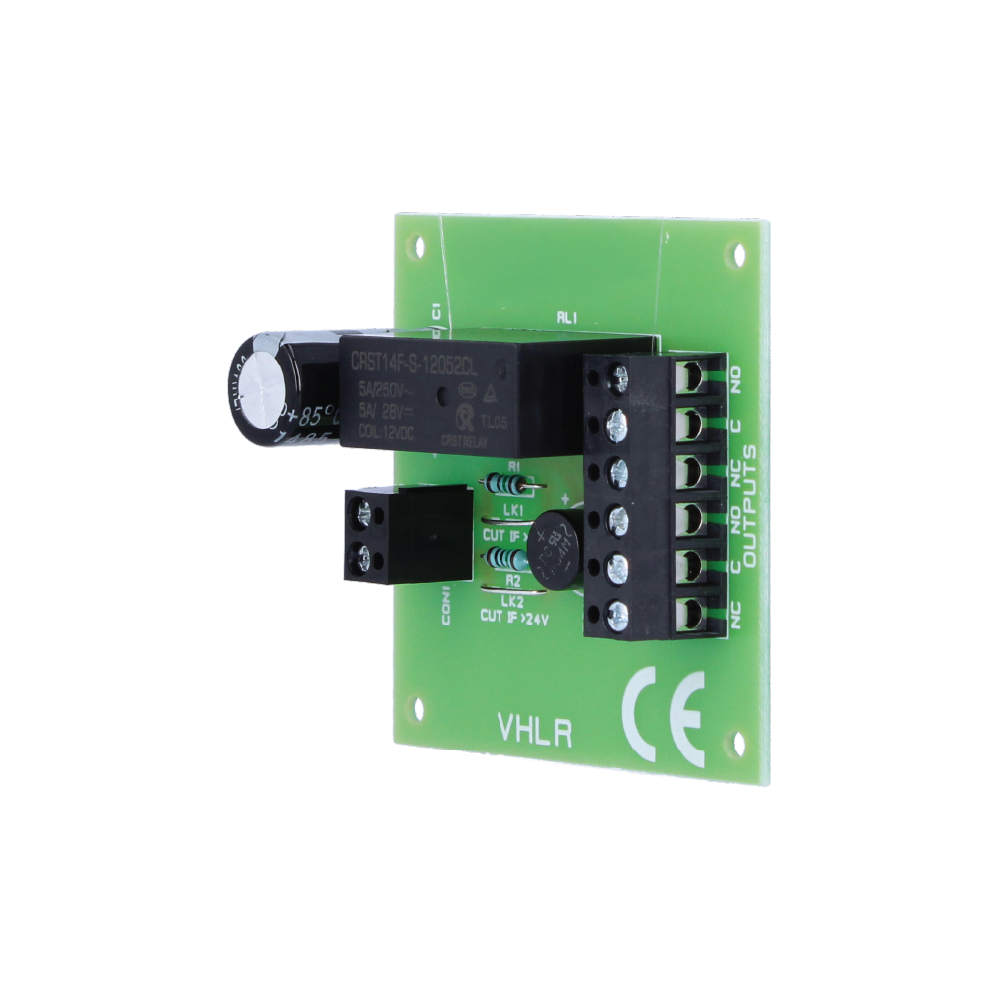

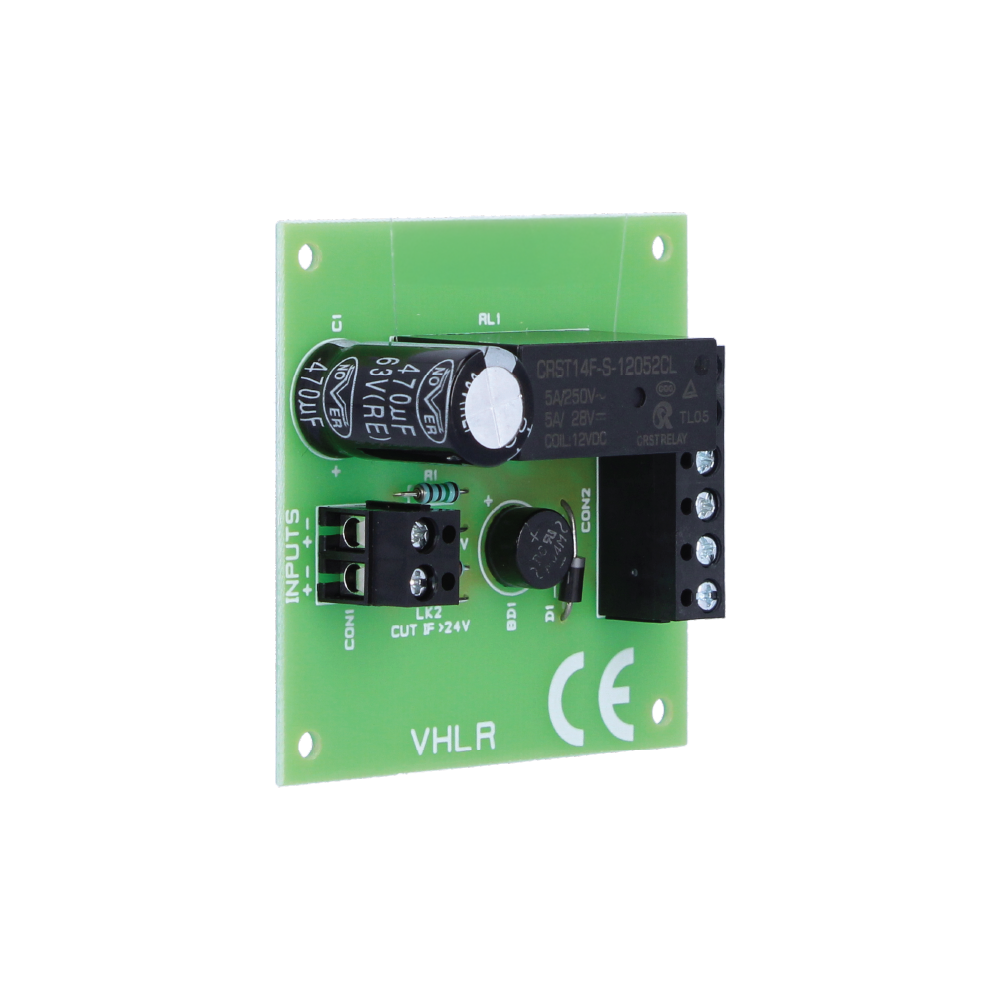

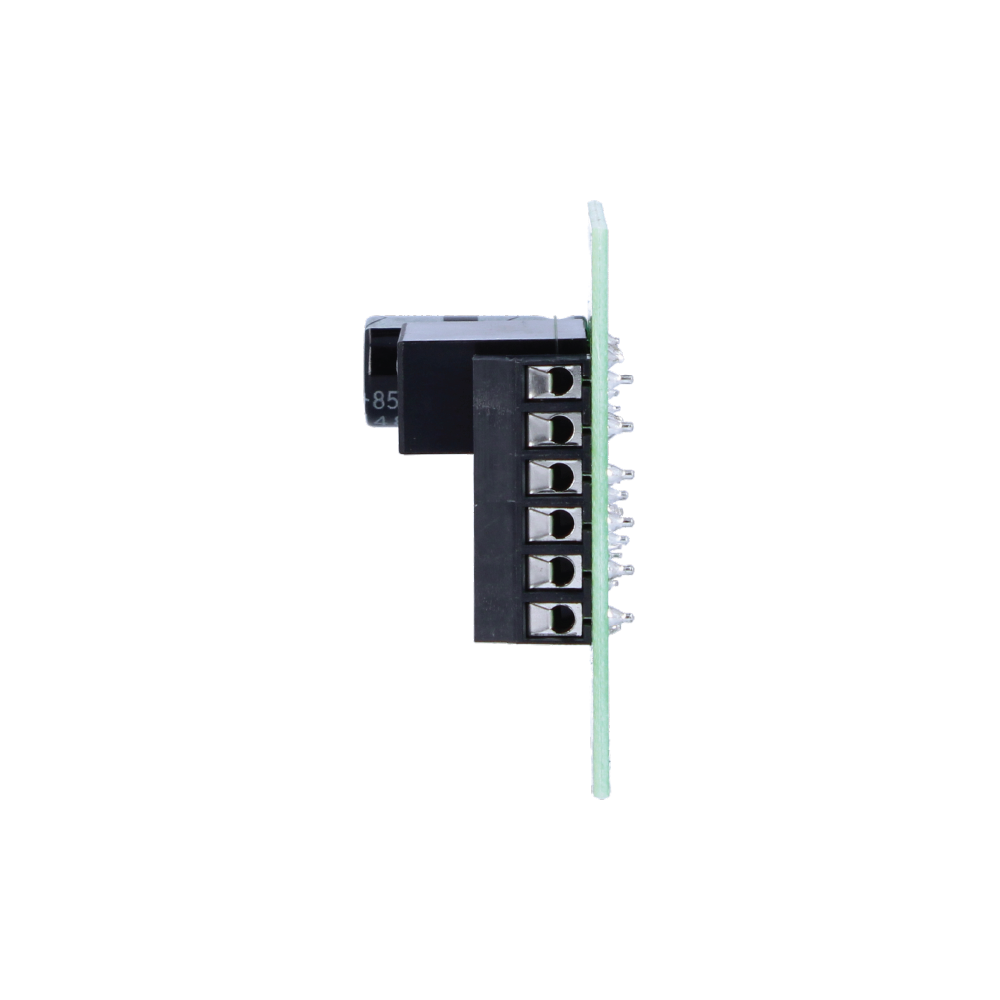

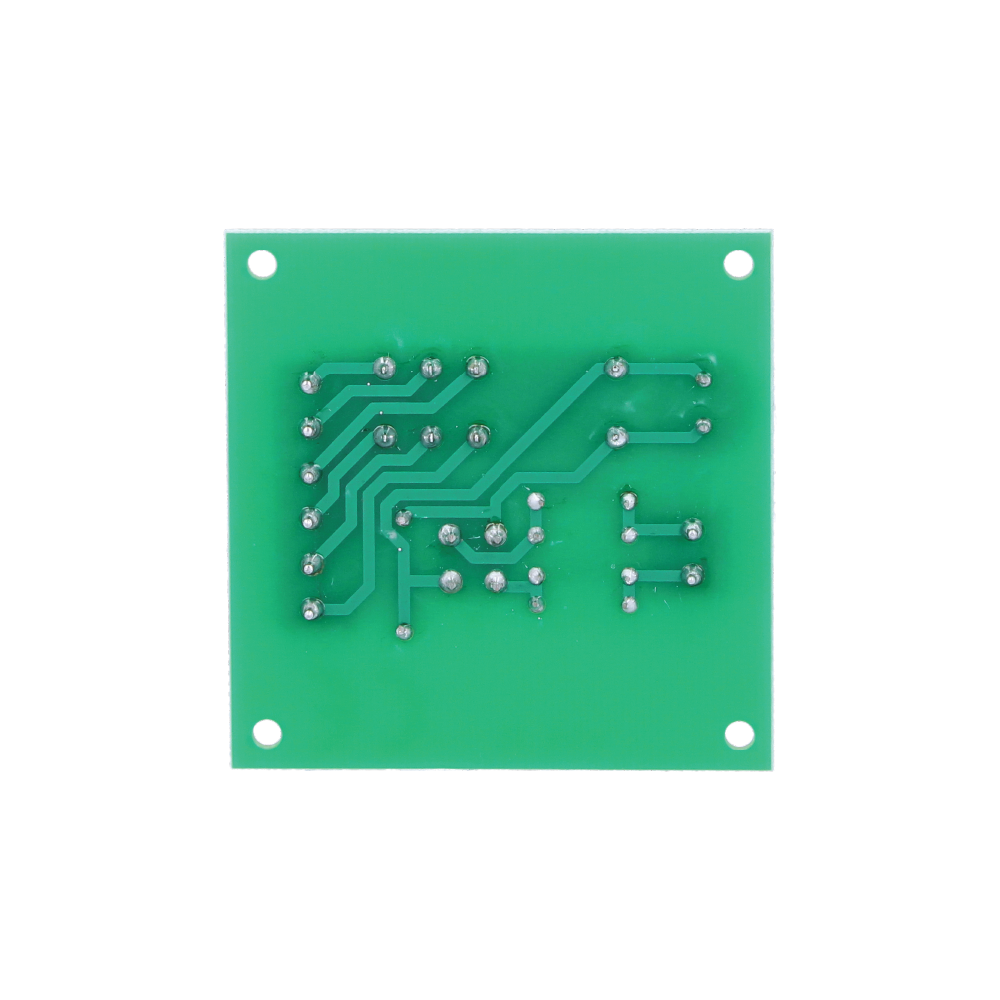

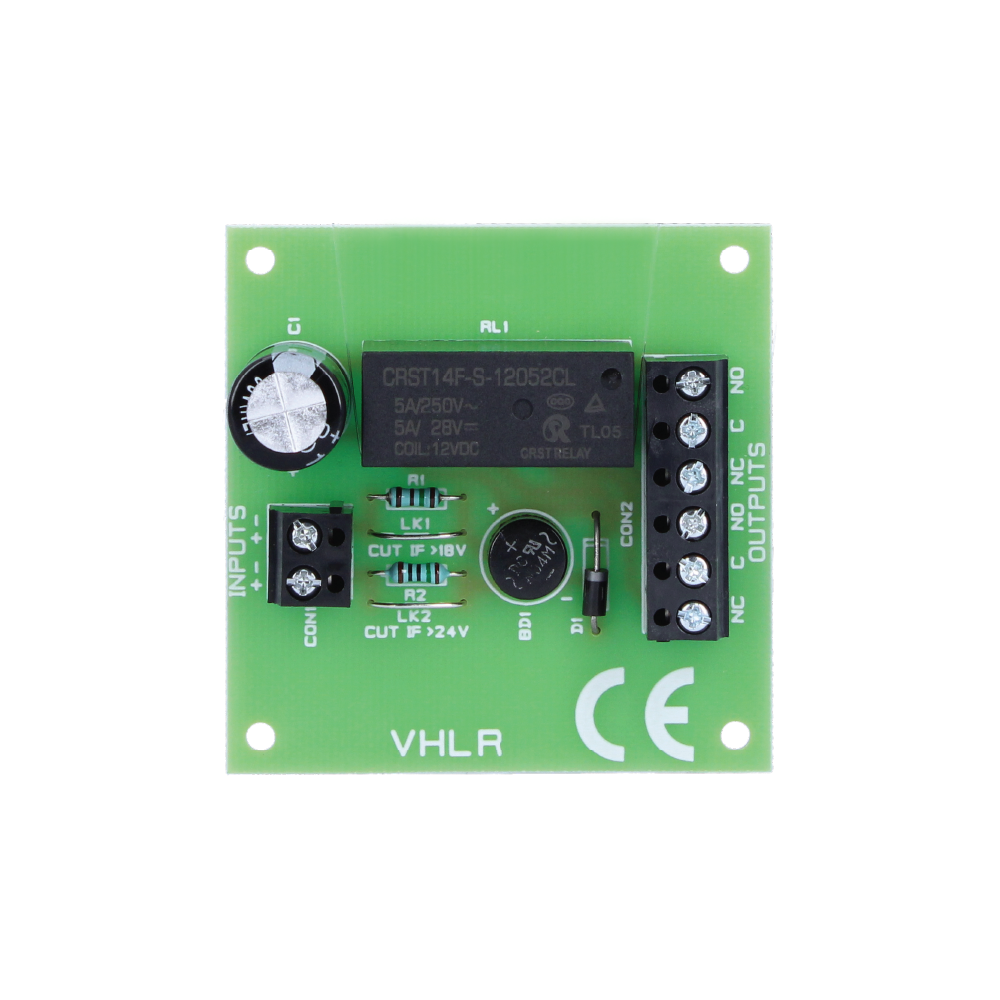

Universal Relay Module
The VHLR is a versatile universal relay module featuring a 12–24 Vac/dc input and a double-pole changeover relay, making it ideal for a wide range of electrical applications. Compact and practical, this handy module is perfect for van spares or situations where a reliable, ready-to-use relay solution is needed.
VHLRUniversal relay module
Number of Relays2 x NO/NC
Min. Voltage (V)12 Vac/dc
Max Voltage (V)24 Vac/dc
Contact Rating5A @ 250 Vac
Product Height (mm)60mm
Product Width (mm)60mm
Product Depth (mm)26mm
Product Weight40g
